Product Model

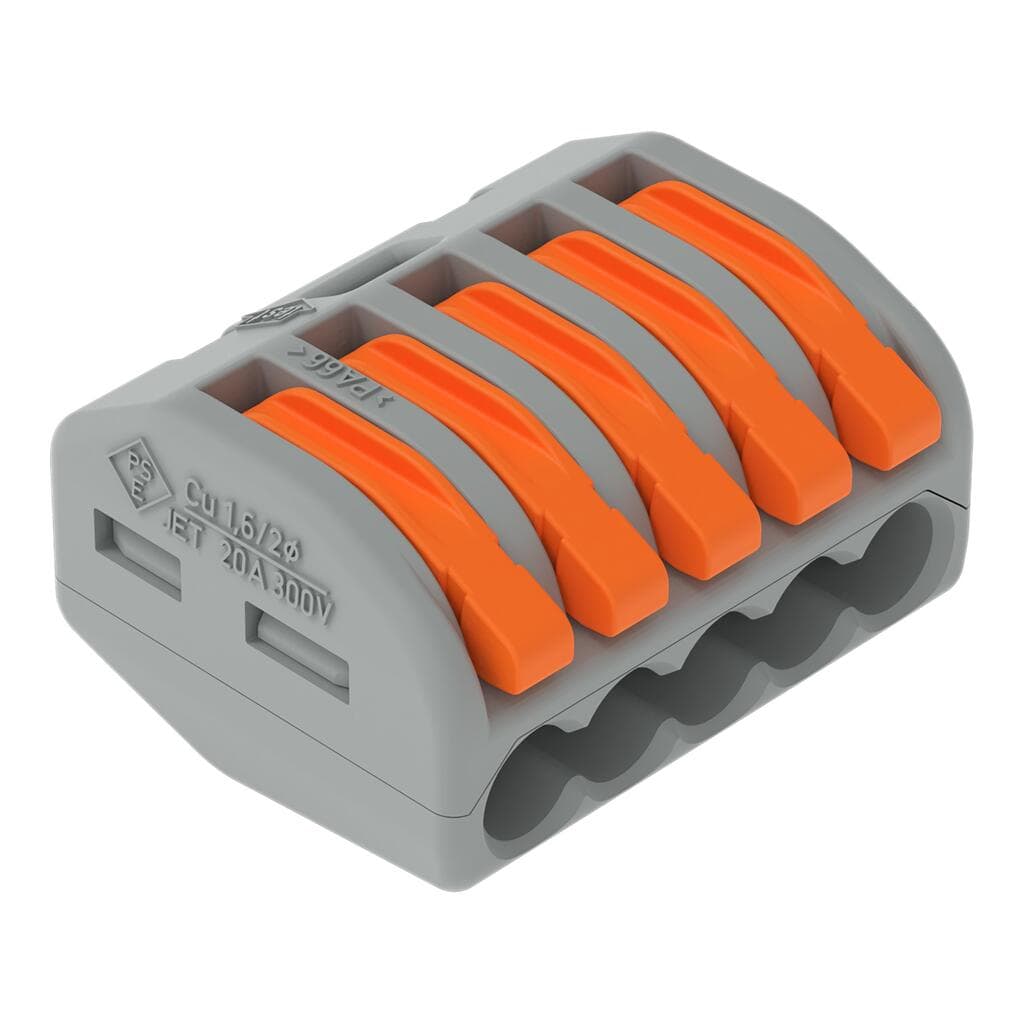

222-415
Key Features
- 1The WAGO 222-415 terminal block is designed for minimal space consumption, making it perfect for high-density wiring.
- 2It supports up to 400V and 4kV impulse voltage, ensuring reliable connections in various applications.
- 3The connector features a cage clamp connection method, providing a secure and tool-free connection for solid, stranded, and fine stranded cables.
- 4It accommodates wire sizes from 28 AWG to 12 AWG, offering flexibility in wiring configurations.
- 5The terminal block is designed for maintenance-free operation, ensuring long-lasting performance in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Safety information | in grounded power lines |
| Clamping units | 5 | Total number of potentials | 1 |
| Width | 26.6?mm?/ 1.047?inches | Height | 14.5?mm?/ 0.571?inches |
| Depth | 20.5?mm?/ 0.807?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Flammability class per UL94 | V0 |
| Fire load | 0.129MJ | Actuator color | orange |
| Weight | 6.6g | Ambient temperature (operation) | +40 °C |
| Continuous operating temperature | 85?°C | Product Group | 7 (Push Wire Conn.) |
| eCl@ss 10.0 | 27-14-11-04 | eCl@ss 9.0 | 27-14-11-04 |
| ETIM 9.0 | EC000446 | ETIM 8.0 | EC000446 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 400?(40)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918464956 | Customs tariff number | 85369010000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | EN 60664 |
| Nominal voltage (II/2) | 400V | Rated surge voltage (II/2) | 4kV |
| Rated current | 32A | Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 |
| Approvals per | UL 486C | Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 20A | Connection technology | CAGE CLAMP? |
| Actuation type | Lever | Connectable conductor materials | Aluminum |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
