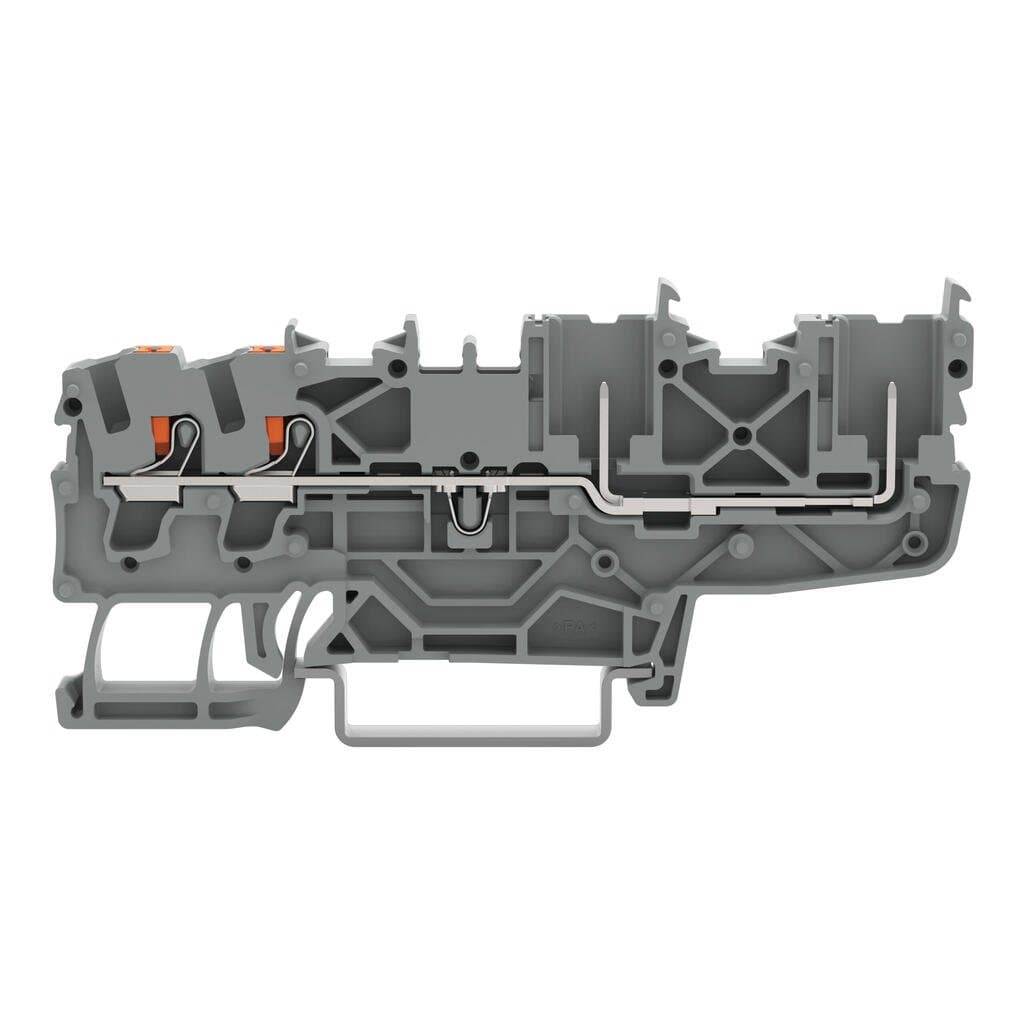

Product Model
2222-1402
Key Features
- 1Utilizes Push-in CAGE CLAMP spring connections for easy and secure wire insertion.
- 2Constructed with a robust orange housing, designed for DIN-rail 35 x 15 and 35 x 7.5 mounting.
- 3Suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG.
- 4Supports a rated current of 24A or 28A, making it ideal for various industrial applications.
- 5Meets CSA 22.2 No 158 and UL 1059 approvals, ensuring safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Female plug slots | 2 |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5.2?mm?/ 0.205?inches | Height | 86.2?mm?/ 3.394?inches |
| Depth from upper-edge of DIN-rail | 36.4?mm?/ 1.433?inches | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.209MJ | Weight | 9.5g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4066966204094 | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 690V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 24A | Current at conductor cross-section (max.) mm2 | 28A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
| Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
| Wiring direction | Front-entry wiring |
