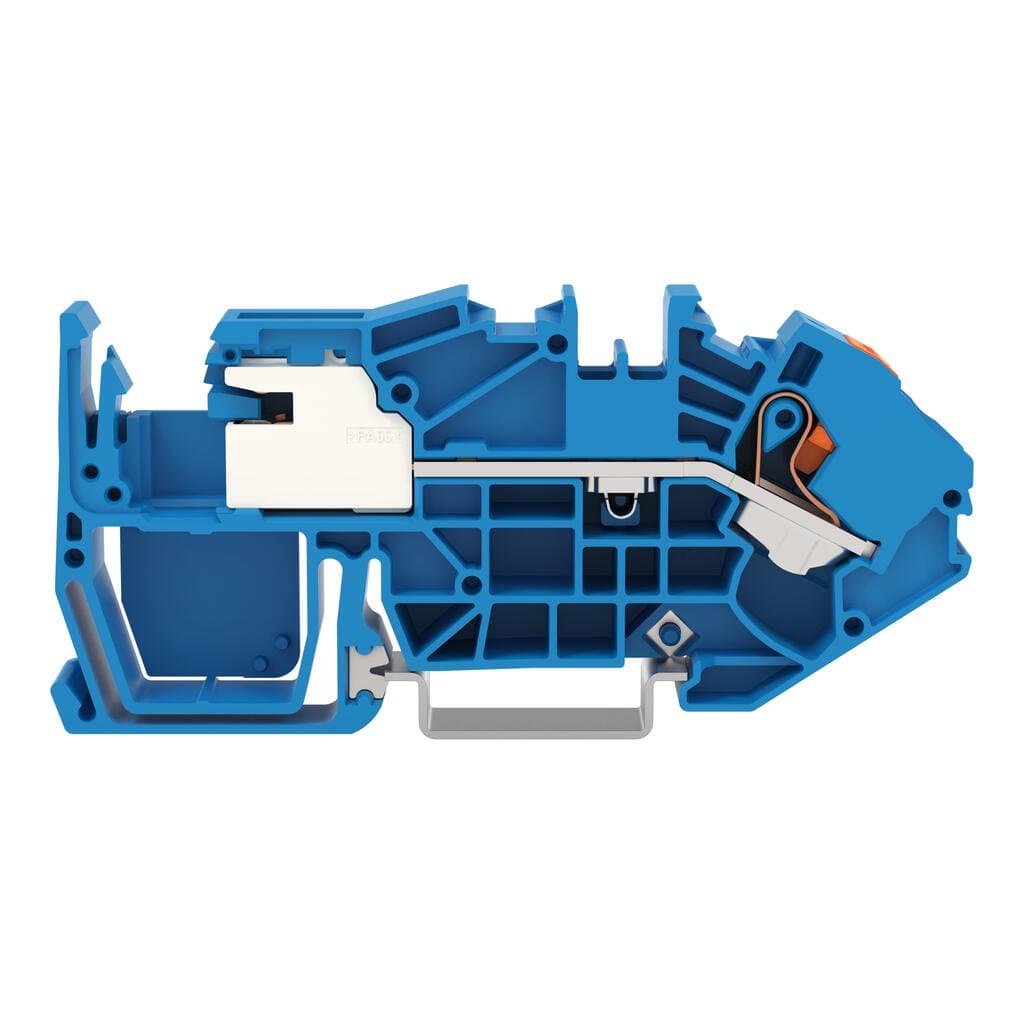

Product Model
2216-7714
Key Features
- 1Reliable Connection: Features Push-in CAGE CLAMP technology for secure conductor connection.
- 2Easy Operation: Equipped with a push-button for easy disconnection and reconnection.
- 3High Current Rating: Supports up to 74 A, making it suitable for high-current applications.
- 4Compact Design: Designed to fit 16 mm² conductors, ensuring space efficiency in industrial settings.
- 5Durable Construction: Constructed from high-quality materials, ensuring long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 12 mm / 0.472 inches | Height | 99.7 mm / 3.925 inches |
| Depth from upper-edge of DIN-rail | 40.8 mm / 1.606 inches | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.663MJ | Weight | 33.6g |
| Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
| ETIM 9.0 | EC001257 | ETIM 8.0 | EC001257 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 20 pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4066966503296 | Customs tariff number | 85365080900 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 73A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 2.238W | Rated current I<sub>N</sub> for specified power loss | 74A |
| Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Connectable conductor materials | Copper |
| Nominal cross-section | 16 mm2 | Solid conductor | 0.5 … 16 mm2 / 20 … 6 AWG |
| Solid conductor; push-in termination | 6 … 16 mm2 / 14 … 6 AWG | Fine-stranded conductor | 0.5 … 25 mm2 / 20 … 4 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 16 mm2 / 20 … 6 AWG | Fine-stranded conductor; with ferrule; push-in termination | 6 … 16 mm2 / 10 … 6 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. | Strip length | 18 … 20 mm / 0.71 … 0.79 inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
