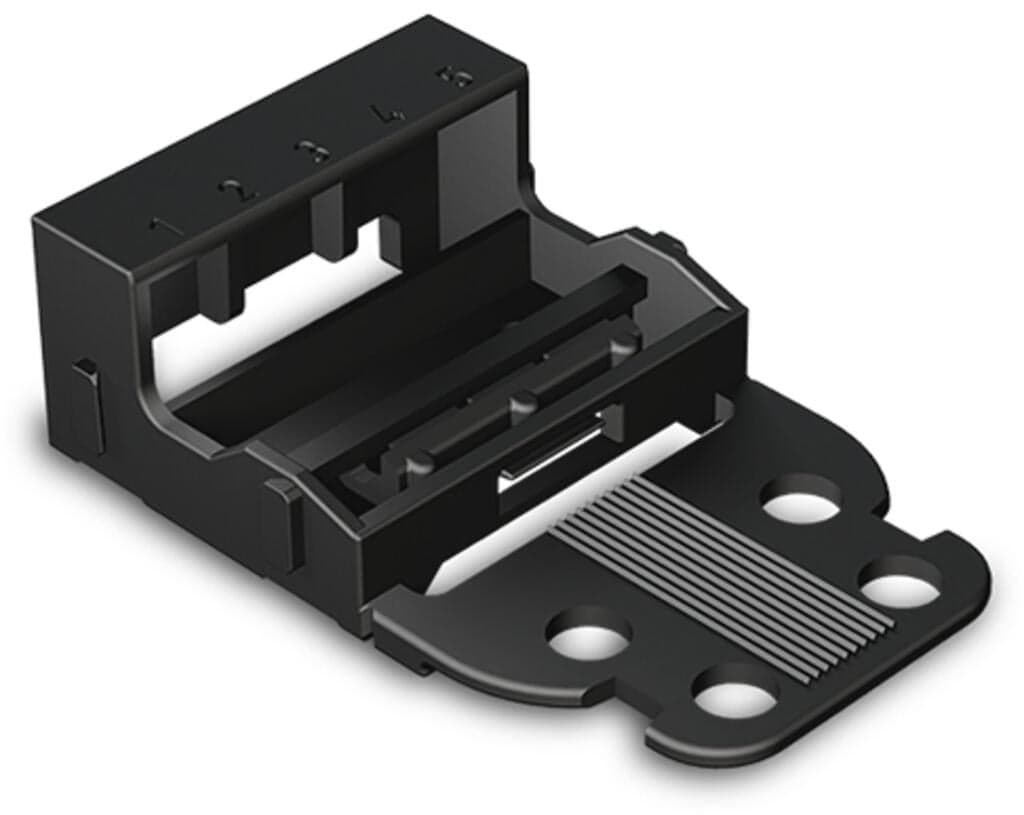

Product Model
221-505/000-004
Key Features
- 1Durable and reliable electrical connector designed for industrial applications.
- 2Easy to install and use, reducing setup time and increasing productivity.
- 3High-quality materials ensure long-lasting performance and minimal maintenance.
- 4Compact design fits seamlessly into various industrial settings, saving space.
- 5Meets or exceeds industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 35?mm?/ 1.378?inches | Height from the surface | 16.9 mm / 0.665 inches |
| Depth | 52.8?mm?/ 2.079?inches | Mounting type | Screw mount |
| Suitable | for 5-wire connectors (4 mm2) | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.147MJ | Weight | 4.9g |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4055143640848 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
