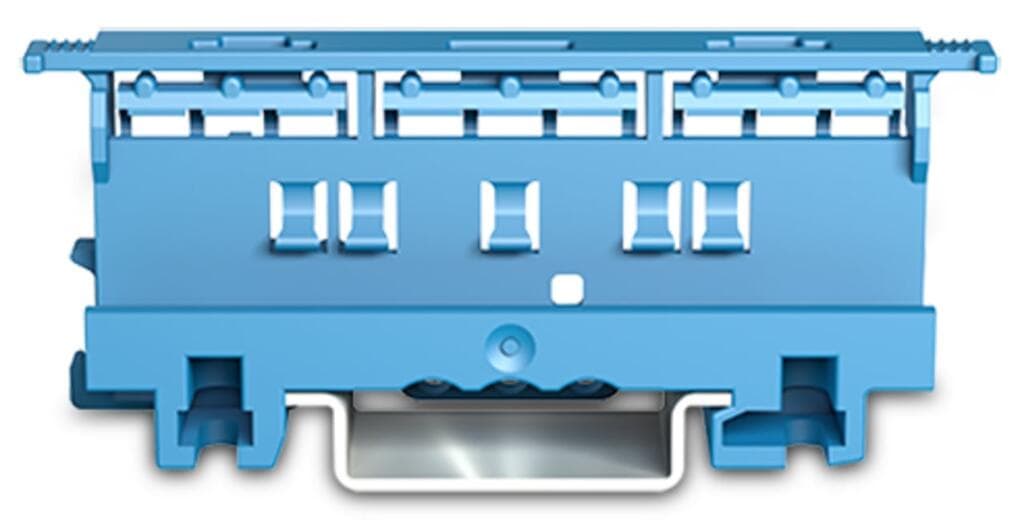

Product Model
221-500/000-006
Key Features
- 1Tool-Free Installation: Easy to use with lever technology, no tools required.
- 2Versatile Mounting: Compatible with both DIN-35 rail and screw mounting.
- 3Secure Connections: Supports 4mm² connections for reliable electrical connections.
- 4Durable Design: Made from high-quality materials for long-lasting performance.
- 5Compact Size: Blue color, perfect for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 17.5?mm?/ 0.689?inches | Height | 77.6?mm?/ 3.055?inches |
| Depth from upper-edge of DIN-rail | 25.5 mm / 1.004 inches | Mounting type | DIN-35 rail |
| Suitable | for 2-, 3- and 5-conductor 221?Series Splicing Connectors (4?mm2) | Note (material data) | Information on material specifications can be found here |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.294MJ | Weight | 9.8g |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4055143833547 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
