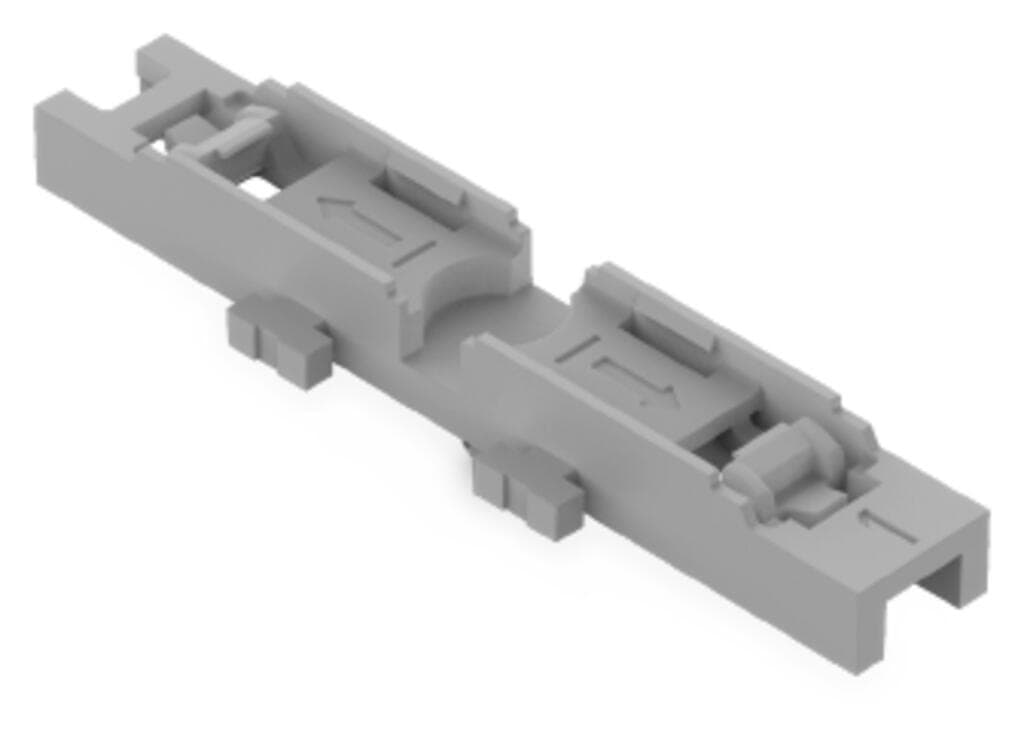

Product Model
221-2531
Key Features
- 1Snap-in Mounting: Easy and secure installation with snap-in mounting.
- 2Compatibility: Designed for use with WAGO 221 series inline splicing connectors.
- 3Durable Material: Made from high-quality polyamide for long-lasting performance.
- 4Compact Design: Measuring 3.93-in x 0.46-in x 6.40-in for space-efficient installation.
- 5RoHS Compliant: Meets environmental standards with RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 11.8?mm?/ 0.465?inches | Height | 11.03 mm / 0.434 inches |
| Height from the surface | 6.5 mm / 0.256 inches | Depth | 56?mm?/ 2.205?inches |
| Design | 1-way | Mounting type | Snap-in foot |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 0.051MJ | Weight | 1.7g |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(5)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4066966119978 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
