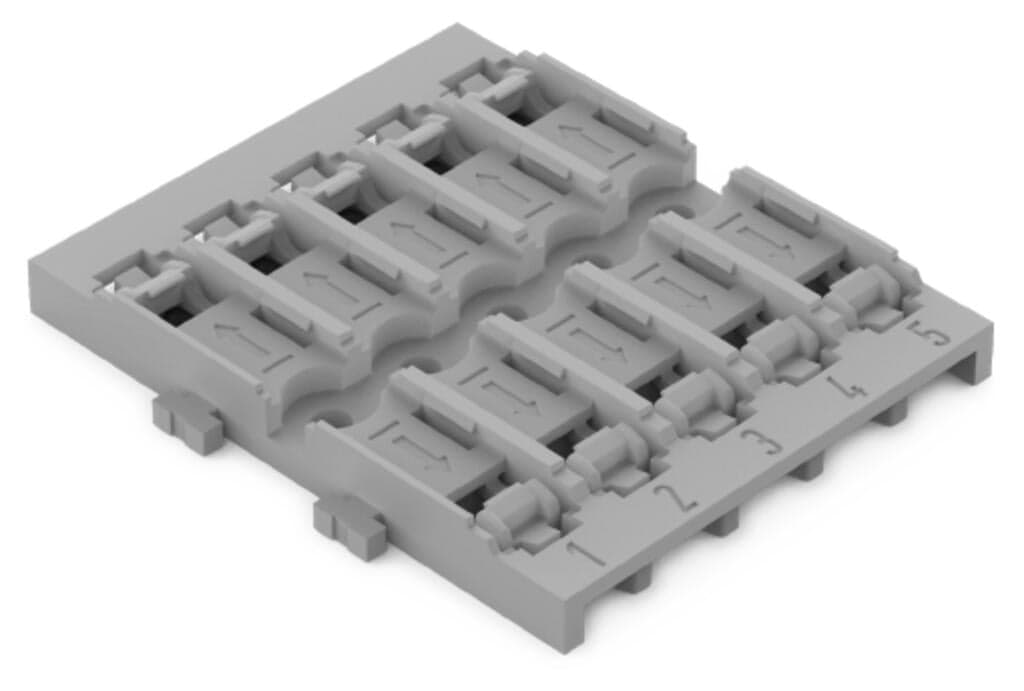

Product Model
221-2525
Key Features
- 1Tool-Free Installation: Easy to use with lever-actuated connectors.
- 2Versatile Applications: Suitable for solid, stranded, and fine-stranded conductors (12-20 AWG).
- 3Durable Material: Made from high-quality polyamide for long-lasting performance.
- 4Compact Design: Dimensions: 3.93-in X 1.53-in X 6.40-in, ideal for space-constrained setups.
- 5Universal Mounting: Compatible with various mounting options, including screw fixing.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 47.8?mm?/ 1.882?inches | Height from the surface | 6.5 mm / 0.256 inches |
| Depth | 56?mm?/ 2.205?inches | Drilled hole diameter for snap-in mounting foot with tolerance | 3.5 mm |
| Design | 5-way | Mounting type | Screw mount |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 0.23MJ | Weight | 7.7g |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(5)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4066966119961 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
