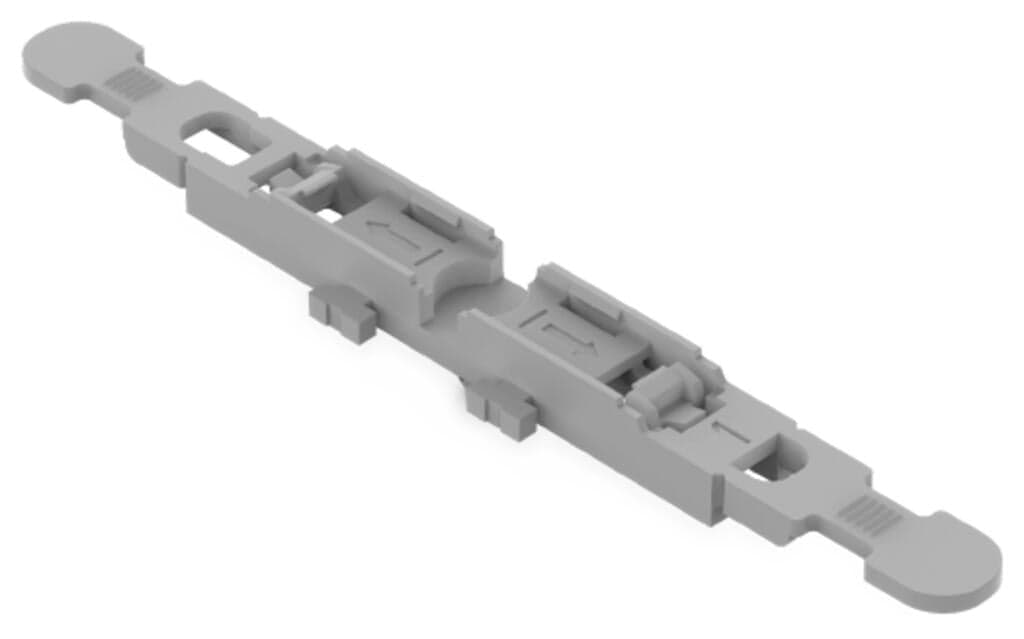

Product Model
221-2511
Key Features
- 1Effortless Installation: Snap-in mounting foot ensures easy and secure placement.
- 2Strain Relief: Protects against mechanical stress and vibration.
- 3Compact Design: Measures 11.8 mm wide, 6.5 mm high, and 100 mm deep.
- 4RoHS Compliant: Meets environmental standards, ensuring eco-friendliness.
- 5Technical Compatibility: Designed for WAGO 221 series inline splicing connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 11.8?mm?/ 0.465?inches | Height | 11.03 mm / 0.434 inches |
| Height from the surface | 6.5 mm / 0.256 inches | Depth | 100?mm?/ 3.937?inches |
| Drilled hole diameter for snap-in mounting foot with tolerance | 3.5 mm | Design | 1-way |
| Mounting type | Snap-in foot | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.068MJ |
| Weight | 2.2g | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?(5)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4066966119879 |
| Customs tariff number | 39269097900 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
