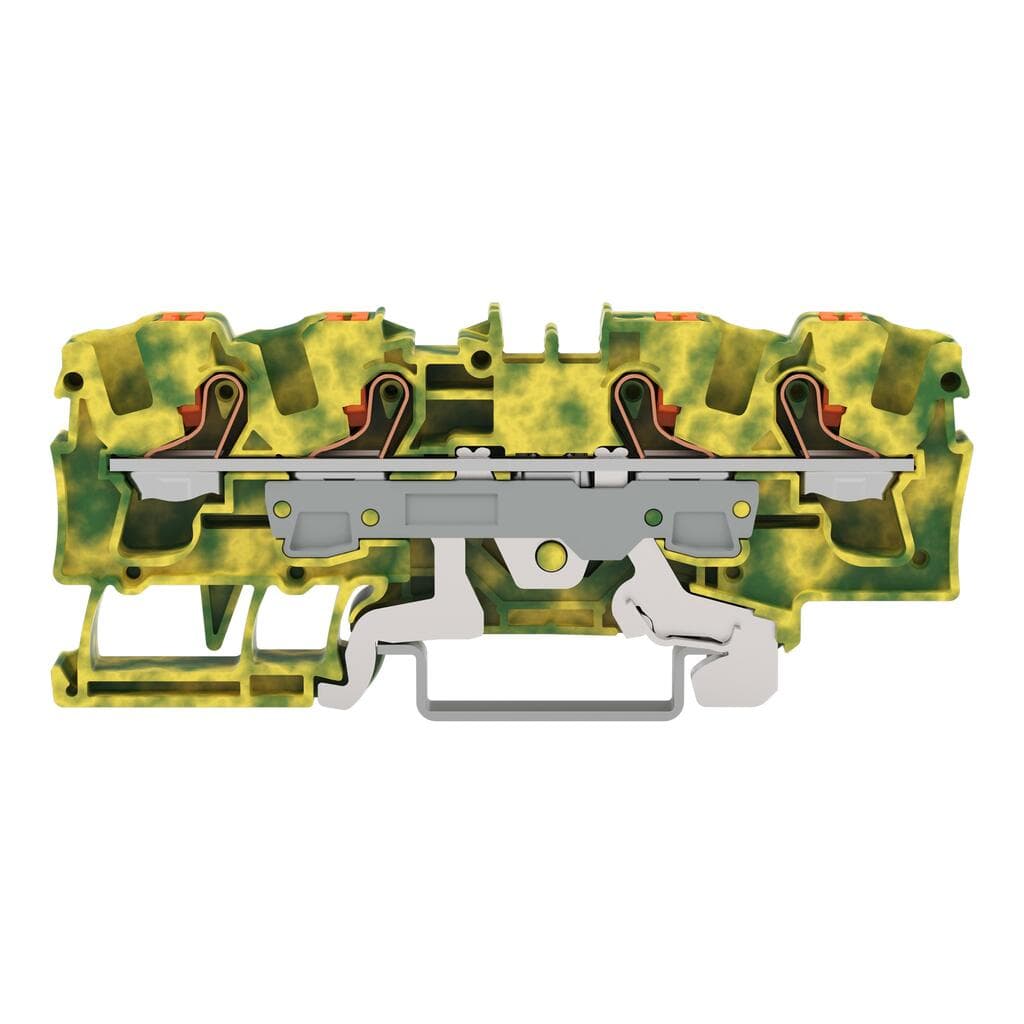

Product Model
2206-1407
Key Features
- 1Designed for hazardous environments.
- 2Easy installation on DIN-rail 35 x 15 or 35 x 7.5 mm.
- 3Secure and reliable wire connections.
- 4Supports wire sizes from 0.5 mm² to 10 mm².
- 5Enhanced visibility for easy wiring management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 7.5 mm / 0.295 inches | Height | 89.3 mm / 3.516 inches |
| Depth from upper-edge of DIN-rail | 32.9 mm / 1.295 inches | Depth | 39.5 mm / 1.555 inches |
| Mounting type | DIN-35 rail | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | green-yellow |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.312MJ |
| Actuator color | orange | Weight | 25.2g |
| Continuous operating temperature | -60 … +105 °C | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966599244 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
| Solid conductor; push-in termination | 1 … 10 mm2 / 14 … 8 AWG | Fine-stranded conductor | 0.5 … 10 mm2 / 20 … 8 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 / 20 … 10 AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6 mm2 / 16 … 10 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15 mm / 0.51 … 0.59 inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
