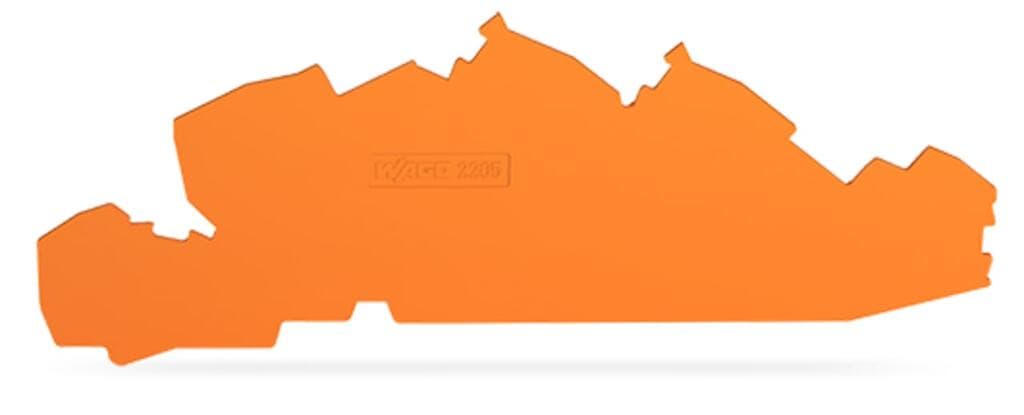

Product Model
2205-7692
Key Features
- 1Made from durable polyamide (PA66) for long-lasting performance.
- 2Easy to install with a snap-on type mounting system.
- 3Compliant with UL94 standards for safety in electrical connections.
- 41 mm thick, 122.7 mm high, and 47.5 mm deep for efficient use in tight spaces.
- 5Meets RoHS standards, ensuring environmental sustainability in your projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Height | 122.7?mm?/ 4.831?inches |
| Depth | 47.5?mm?/ 1.87?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Weight | 4g |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4066966159530 | Customs tariff number | 85389099990 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
