Product Model
2205-7542

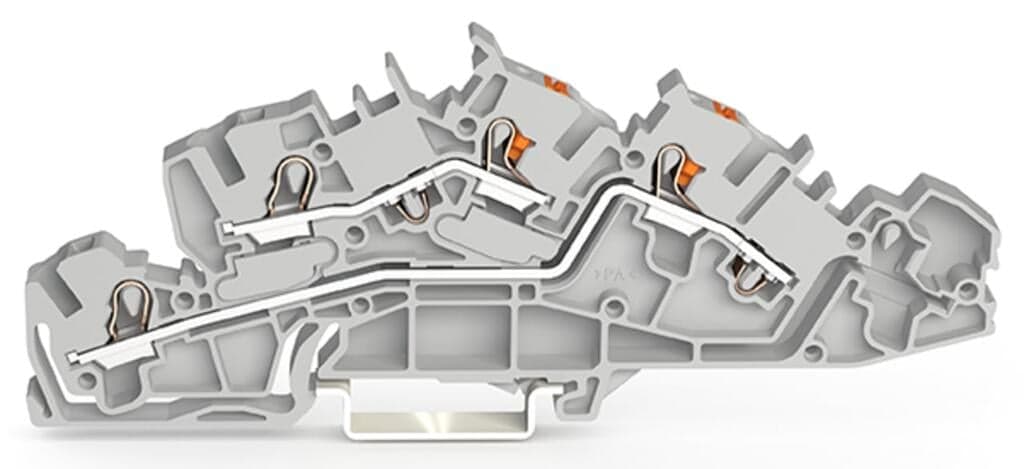

Key Features
- 1Secure Wiring: Utilizes Push-in CAGE CLAMP spring connections for secure and reliable wiring.
- 2Multilevel Installation: Designed with two decks for efficient and organized terminal block setup.
- 3DIN-35 Rail Mounting: Easily mounts on DIN-35 rail systems for versatile installation options.
- 4Wide Wire Compatibility: Accommodates wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG.
- 5Gray Color Option: Available in a durable gray color for easy identification and integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 2 |
| Number of levels | 3 | Width | 6.2?mm?/ 0.244?inches |
| Height | 123.5?mm?/ 4.862?inches | Depth from upper-edge of DIN-rail | 45.6?mm?/ 1.8?inches |
| Potential Marking | L/L | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.387MJ | Weight | 21.7g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC001329 | ETIM 8.0 | EC001329 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4066966165265 | Customs tariff number | 85369010000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 32A | Current at conductor cross-section (max.) mm2 | 40A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.024W |
| Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 |
| Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Solid conductor; push-in termination | 1.5 … 6?mm2?/ 14 … 10?AWG |
| Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1.5 … 4?mm2?/ 18 … 12?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Wiring direction | Front-entry wiring |
| Actuation type 2 | Operating tool |
