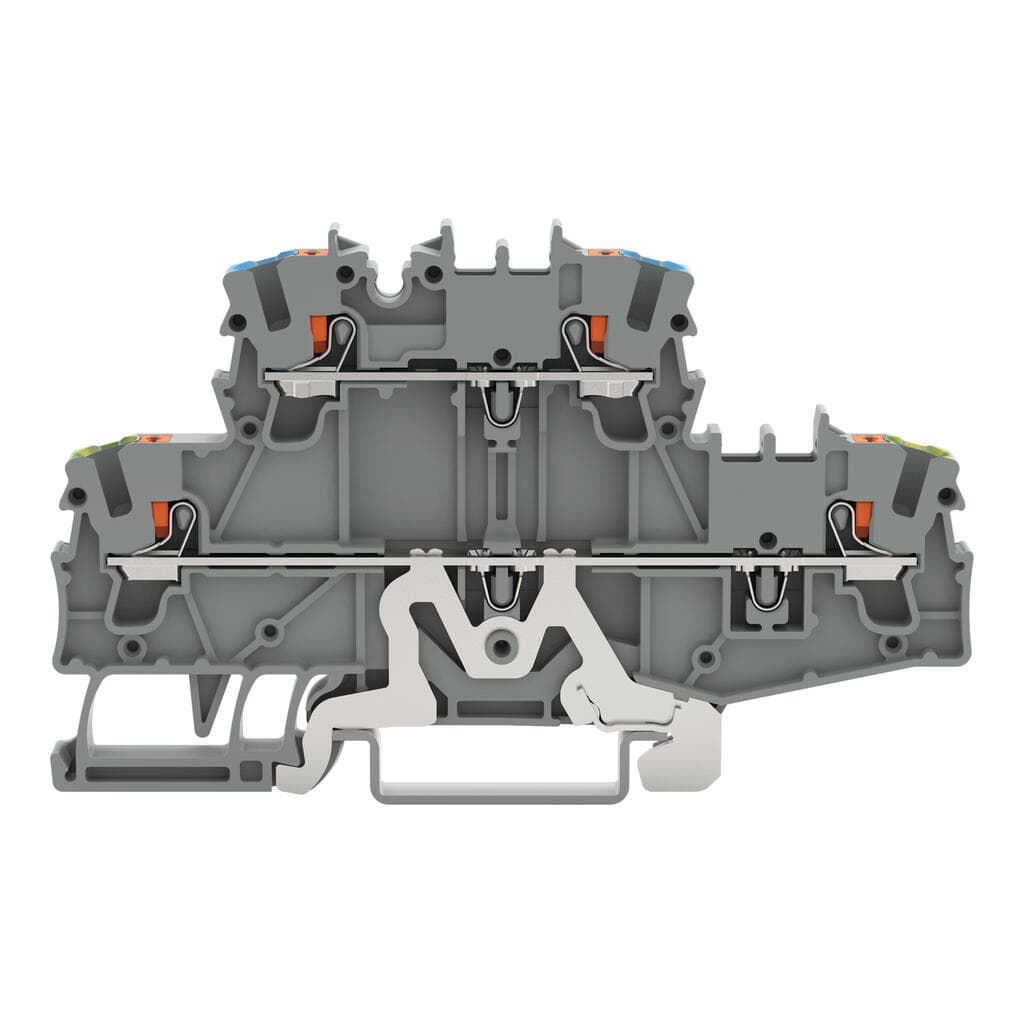

Product Model
2202-2717
Key Features
- 1Triple-deck terminal block design for enhanced connectivity.
- 2Ground conductor/through terminal block with push-button.
- 32.5 mm² capacity for robust electrical connections.
- 4PE/N insulation for safety in Ex e II a environments.
- 5Push-button operation for easy terminal access.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 2 |
| Number of levels | 2 | Number of jumper slots | 4 |
| Width | 5.2?mm?/ 0.205?inches | Height | 92.5?mm?/ 3.642?inches |
| Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches | Potential Marking | PE/N |
| Mounting type | DIN-35 rail | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.032MJ |
| Actuator color | orange | Weight | 15.5g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143844499 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1005 U / IECEx: PTB 18.0012U (Ex eb IIC Gb) |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 24A | Current at conductor cross-section (max.) mm2 | 28A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 24A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 24A |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
| Rated current (Ex e II) | 17.5A | Rated current (Ex e II) with jumper | 17A |
| Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
