Product Model

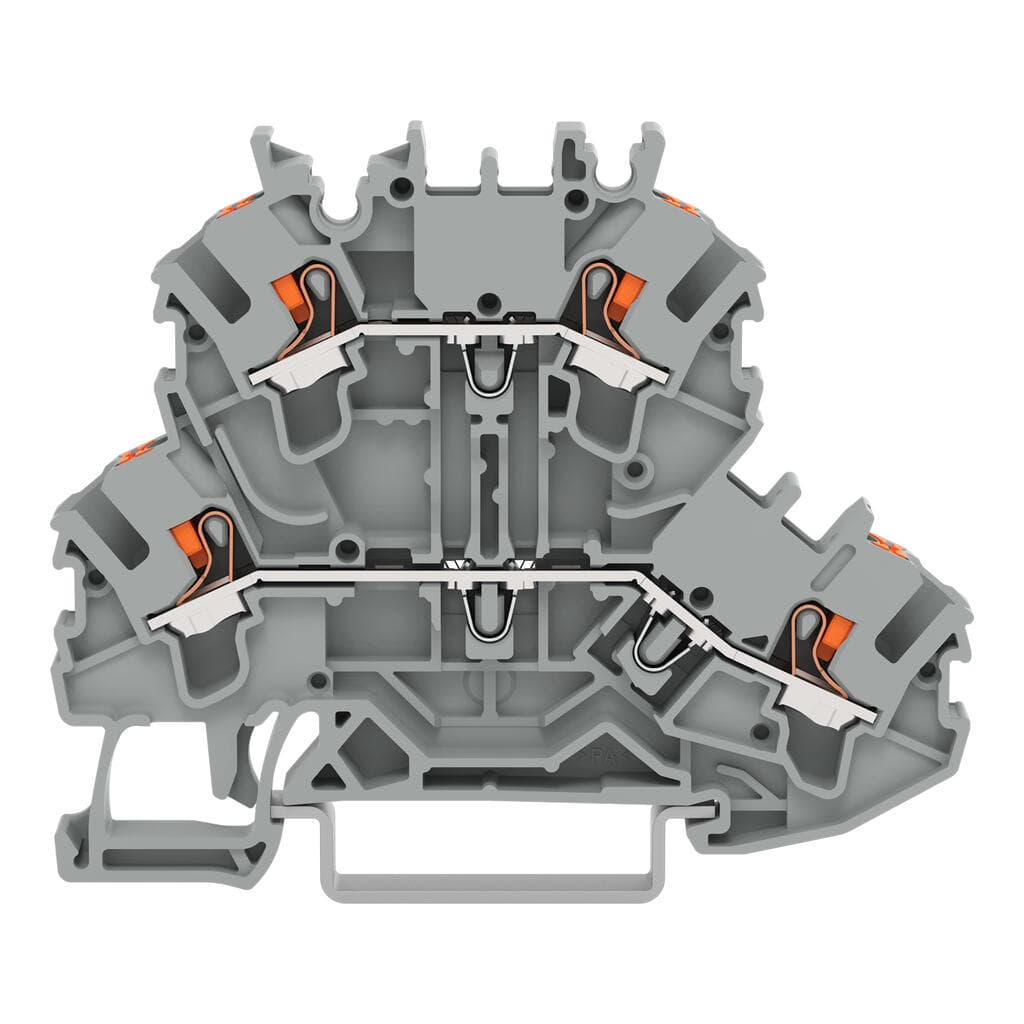

2202-2201
Key Features
- 1Reliable push-in CAGE CLAMP technology ensures secure and efficient connections.
- 2Meets stringent safety standards for explosive environments, making it ideal for hazardous applications.
- 3Designed for use on DIN-rail 35 x 15 and 35 x 7.5, offering versatile installation options.
- 4Suitable for conductors up to 2.5 mm², providing ample space for various wiring configurations.
- 5Durable and fire-resistant insulation ensures long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 2 |
| Number of levels | 2 | Number of jumper slots | 4 |
| Width | 5.2 mm / 0.205 inches | Height | 69.7 mm / 2.744 inches |
| Depth from upper-edge of DIN-rail | 51.7 mm / 2.035 inches | Potential Marking | L/L |
| Mounting type | DIN-rail 35 x 15 | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.221MJ |
| Weight | 10.2g | Processing temperature | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50 pcs | Packaging type | Box |
| Country of origin | PL | GTIN | 4066966426175 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 23A |
| Current at conductor cross-section (max.) mm2 | 28A | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
| Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 23A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
| Total number of connection points | 2 | Actuation type | Push-button |
| Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
| Solid conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Solid conductor; push-in termination | 1 mm2 / 18 AWG |
| Stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG | Fine-stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 1 … 2.5 mm2 / 18 … 12 AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 mm2 / 18 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
| Wiring direction | Front-entry wiring | Number of connection points 2 | 2 |
Specifications may be subject to change without notice
