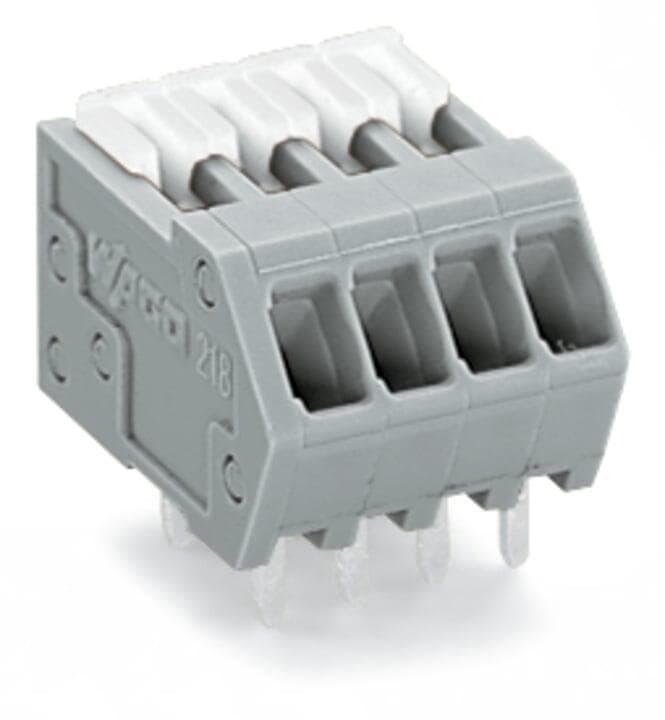

Product Model
218-524
Key Features
- 1Secure Connections: The WAGO 218-524 offers a 24-pole design with a pin spacing of 2.54 mm, ensuring reliable connections in various applications.
- 2Easy Termination: The push-in CAGE CLAMP technology allows for fast and time-saving termination of solid and ferruled conductors.
- 3High Voltage Rating: Rated for 160 V, this terminal block is suitable for a wide range of electrical systems.
- 4Durable Construction: Made from high-quality materials, the 218-524 is designed to withstand overvoltage category III and pollution degree 2.
- 5Versatile Usage: Ideal for use in drive and controller technology, lighting industry, and other applications requiring secure PCB connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 24 |
| Total number of potentials | 24 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 2.54 mm / 0.1 inches |
| Width | 62.46 mm / 2.459 inches | Height | 10.9 mm / 0.429 inches |
| Height from the surface | 8.1 mm / 0.319 inches | Depth | 13 mm / 0.512 inches |
| Solder pin length | 2.8mm | Solder pin dimensions | 0.5 x 0.75 mm |
| Drilled hole diameter with tolerance | 1.1(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.387MJ | Weight | 7.8g |
| Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 60 (15) pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4044918878821 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 6A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 150V |
| Rated current UL (Use Group B) | 4A | Rated voltage CSA (Use Group B) | 150V |
| Rated current CSA (Use Group B) | 4A | Connection technology | CAGE CLAMP? |
| Actuation type | Slider | Solid conductor | 0.08 … 0.5 mm2 / 28 … 20 AWG |
| Fine-stranded conductor | 0.08 … 0.5 mm2 / 28 … 20 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 mm2 | Note (conductor cross-section) | Terminating 0.75 mm2/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size. |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches | Conductor connection direction to PCB | 40° |
| Number of poles | 24 |
Specifications may be subject to change without notice
