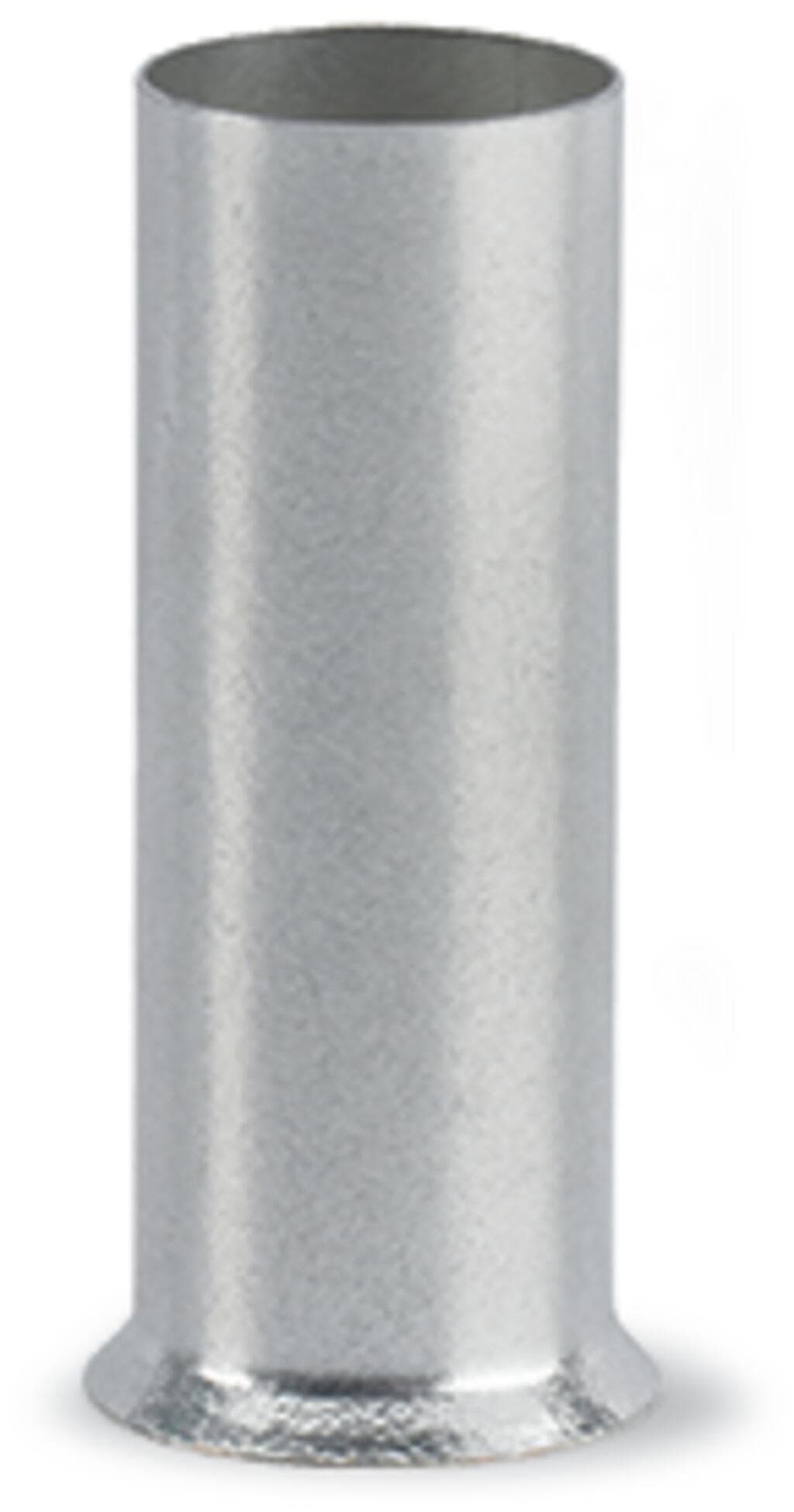

Product Model
216-414
Key Features
- 1RoHS Compliant: Meets environmental standards.
- 2Electro-tin Plated: Provides excellent electrical conductivity.
- 3Gastight Crimped: Ensures secure and reliable connections.
- 4Silver Color: Aesthetically pleasing and durable finish.
- 5Compact Design: Easy to handle and install in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 2AWG | Sleeve for | 35mm2 |
| Strip length | 25?mm?/ 0.98?inches | Length | 25mm |
| Diameter | 11mm | Diameter crimp sleeve inside | 8.3mm |
| Color | silver-colored | Weight | 1.3g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-02-01 |
| eCl@ss 9.0 | 27-40-02-01 | ETIM 9.0 | EC000005 |
| ETIM 8.0 | EC000005 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821134183 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
