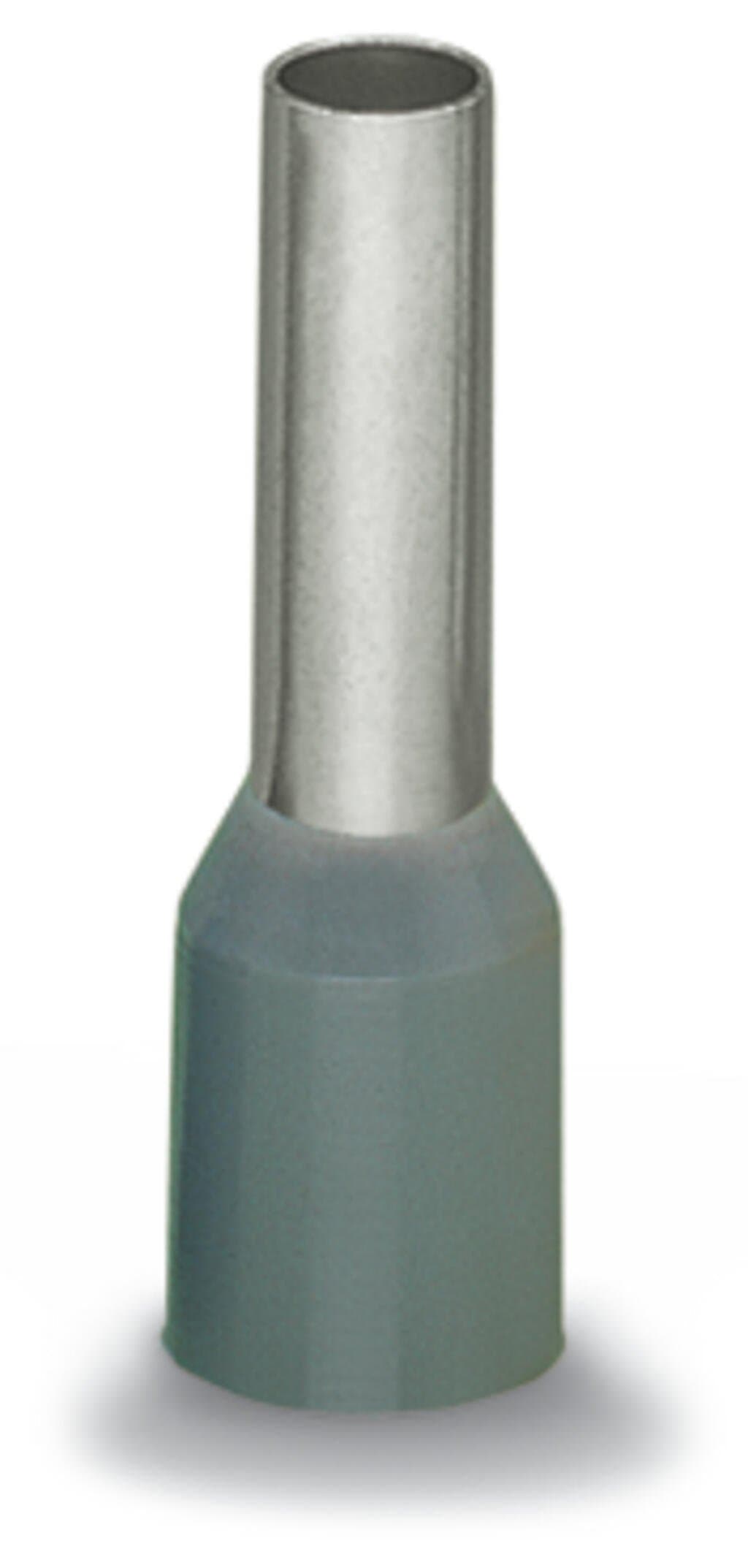

Product Model
216-287
Key Features
- 1Ensures consistent and durable electrical connections.
- 2Compatible with AWG 12 wire sizes, providing flexibility in various applications.
- 3Features robust insulation for added safety and protection against electrical shock.
- 4Simple to install with minimal tools required, reducing setup time.
- 5Meets RoHS standards, ensuring environmental sustainability and compliance with regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 12AWG | Sleeve for | 4mm2 |
| Strip length | 20?mm?/ 0.79?inches | Length | 26mm |
| Crimp length (length of sleeve) | 18mm | Diameter | 5.4mm |
| Inner Diameter plastic collar | 4.8mm | Diameter crimp sleeve inside | 2.8mm |
| Suitable | 2010 to 2016 Series | Color | gray |
| Weight | 0.2g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 500?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918604345 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
