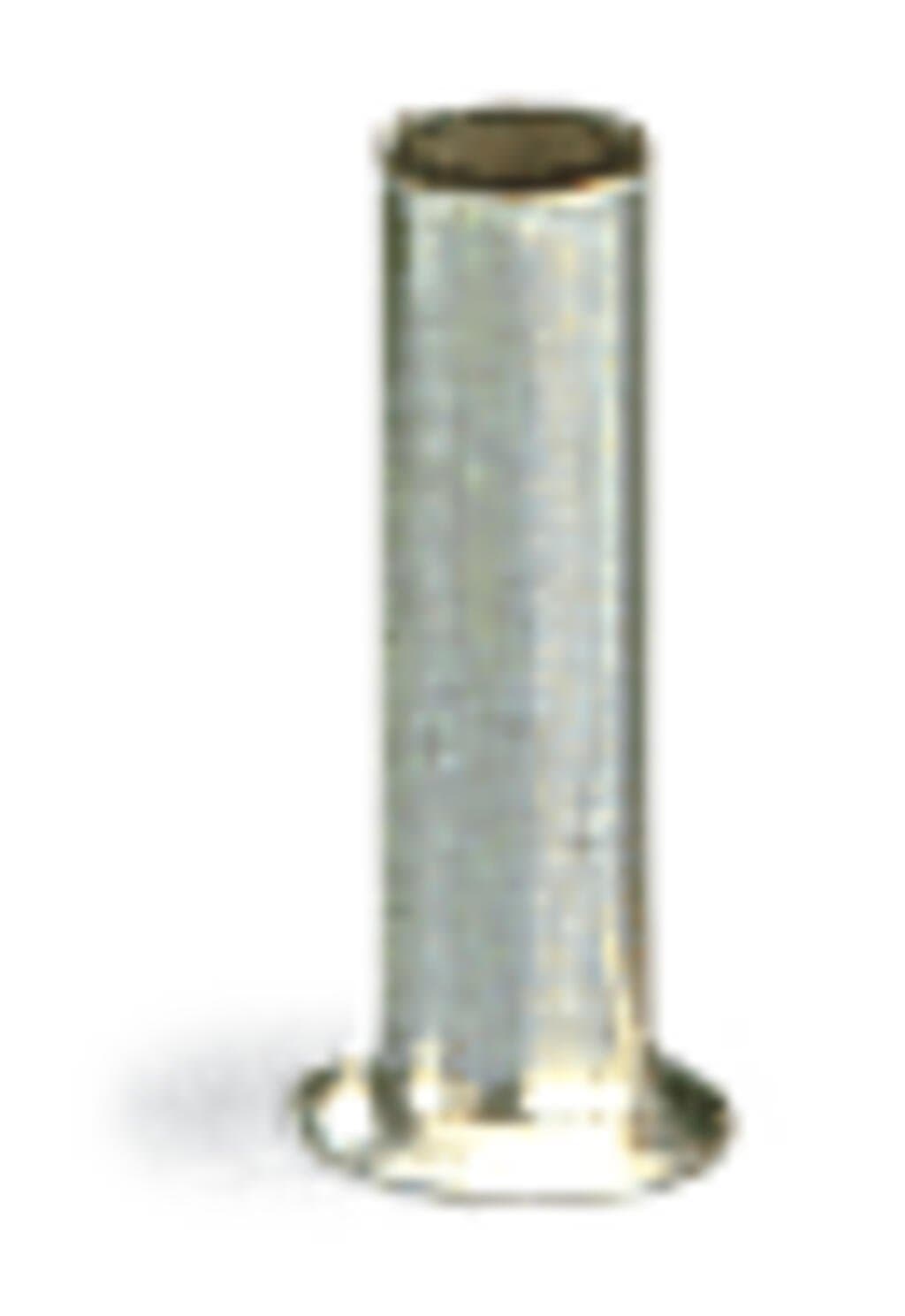

Product Model
216-152
Key Features
- 1Electro-tin plating for corrosion resistance.
- 2Gastight crimp ensures electrical and mechanical reliability.
- 3RoHS compliant for environmental safety.
- 4Uninsulated design for direct conductor connection.
- 5Compact dimensions: 5 mm length, 1.8 mm diameter.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 22AWG | Sleeve for | 0.34mm2 |
| Strip length | 5?mm?/ 0.2?inches | Length | 5mm |
| Diameter | 1.8mm | Diameter crimp sleeve inside | 0.85mm |
| Weight | 0g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5000?(1000)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332277587 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
