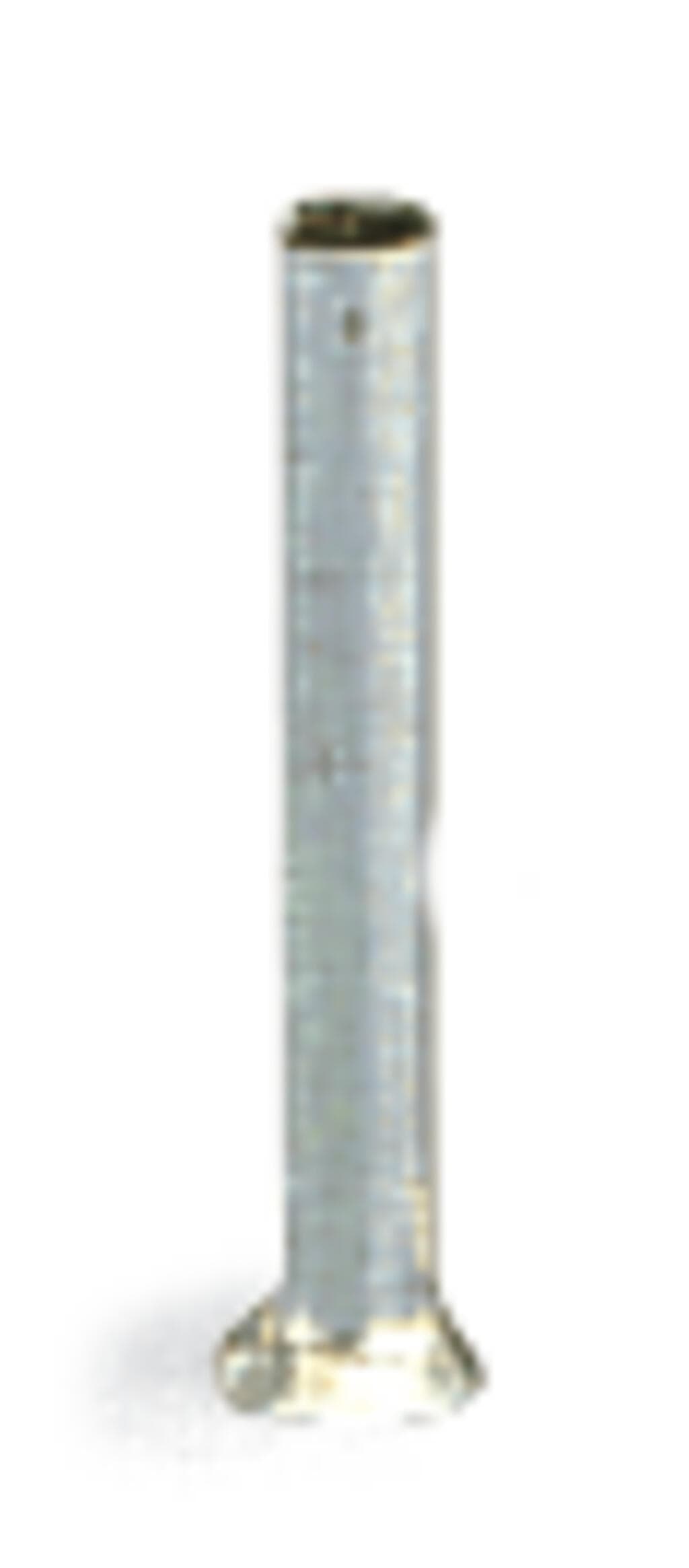

Product Model
216-132
Key Features
- 1Durable and reliable terminal made of electrolytic copper.
- 2Ensures a secure and long-lasting connection.
- 3Suitable for 24 AWG wire, ideal for various industrial applications.
- 4Provides both electrical and mechanical reliability.
- 5Environmentally friendly, compliant with RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 22AWG | Sleeve for | 0.34mm2 |
| Strip length | 7?mm?/ 0.28?inches | Length | 7mm |
| Diameter | 1.8mm | Diameter crimp sleeve inside | 0.85mm |
| Weight | 0g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5000?(1000)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332277594 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
