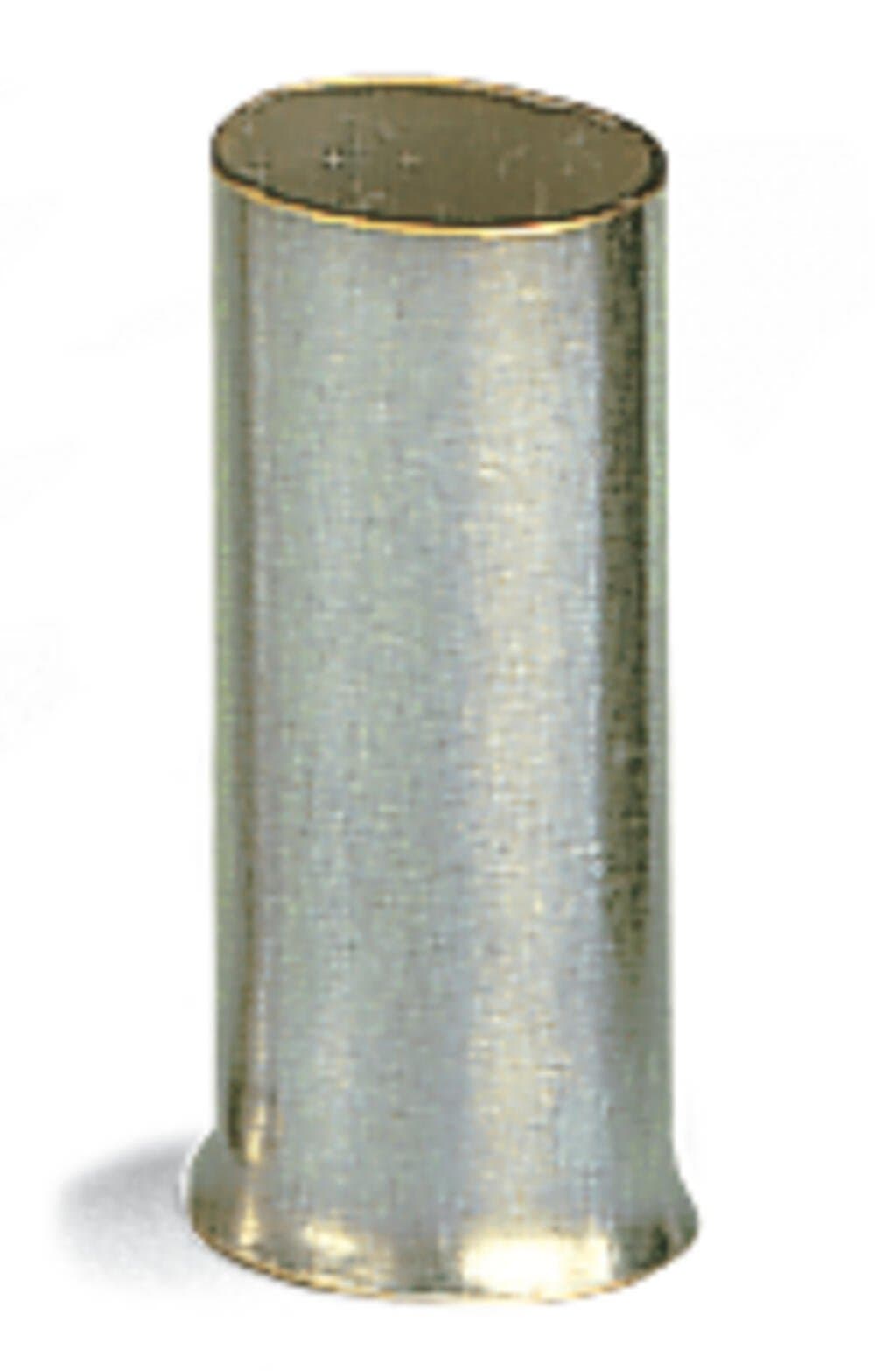

Product Model
216-110
Key Features
- 1Electro-tin plated for enhanced durability.
- 2Uninsulated for direct wire connections.
- 3Gastight crimped for reliable electrical and mechanical reliability.
- 4Compatible with 16 mm² / 6 AWG wire sizes.
- 5RoHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 6AWG | Sleeve for | 16mm2 |
| Strip length | 15?mm?/ 0.59?inches | Length | 15mm |
| Diameter | 7.5mm | Diameter crimp sleeve inside | 5.8mm |
| Color | brown metallic | Weight | 0.5g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-02-01 |
| eCl@ss 9.0 | 27-40-02-01 | ETIM 9.0 | EC000005 |
| ETIM 8.0 | EC000005 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 500?(250)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332277723 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
