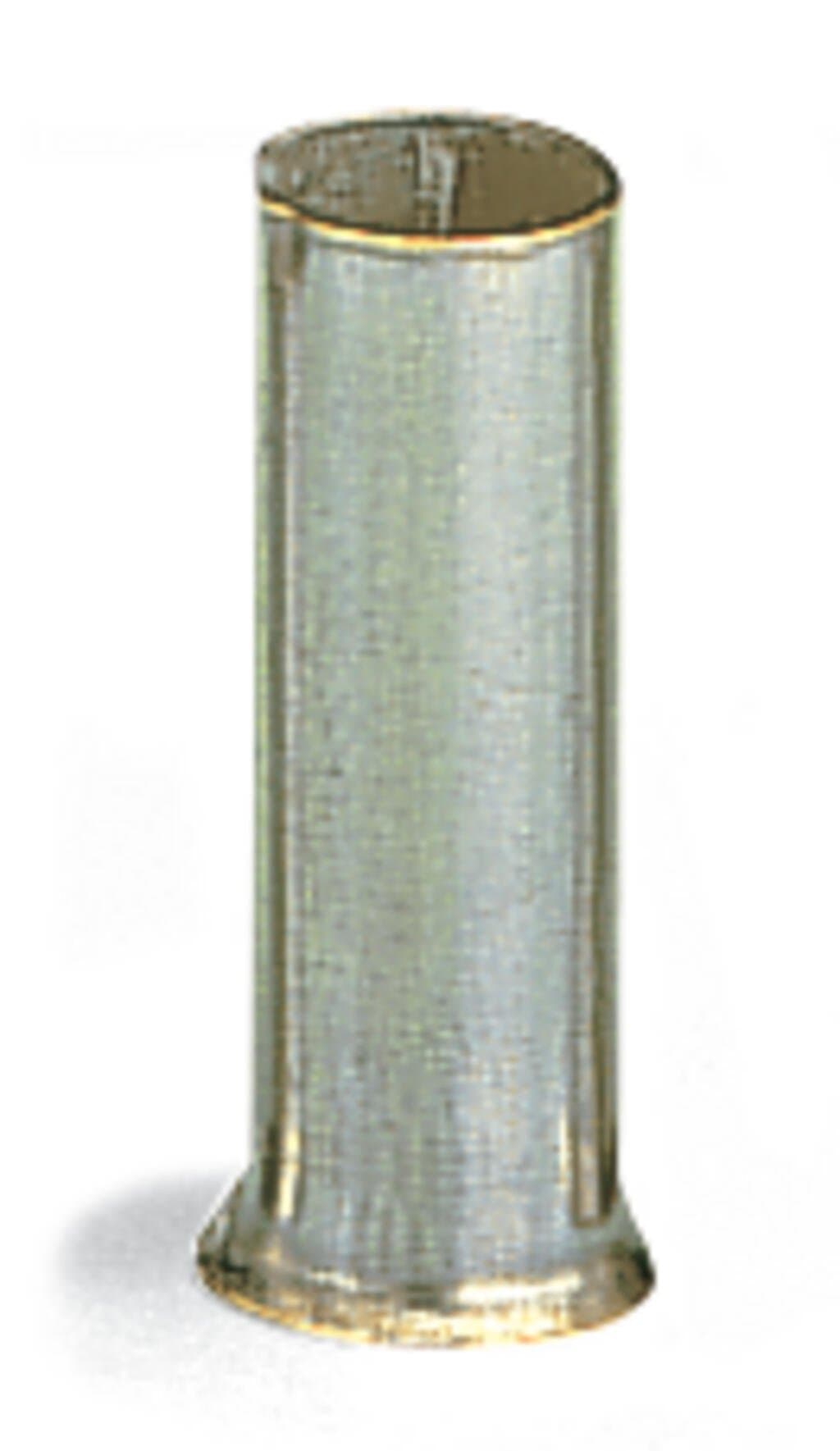

Product Model
216-108
Key Features
- 1Electro-Tin Plated Conductor: Ensures excellent conductivity and durability.
- 2Non-Insulated Design: Perfect for applications requiring direct contact.
- 3Silver-Colored Finish: Aesthetically pleasing and resistant to corrosion.
- 4Gastight Crimped: Provides a secure and reliable connection.
- 5RoHS Compliant: Meets environmental standards for sustainable use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 10AWG | Sleeve for | 6mm2 |
| Strip length | 12?mm?/ 0.47?inches | Length | 12mm |
| Diameter | 4.7mm | Diameter crimp sleeve inside | 3.5mm |
| Color | silver-colored | Weight | 0.2g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-02-01 |
| eCl@ss 9.0 | 27-40-02-01 | ETIM 9.0 | EC000005 |
| ETIM 8.0 | EC000005 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1000?(250)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332277709 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
