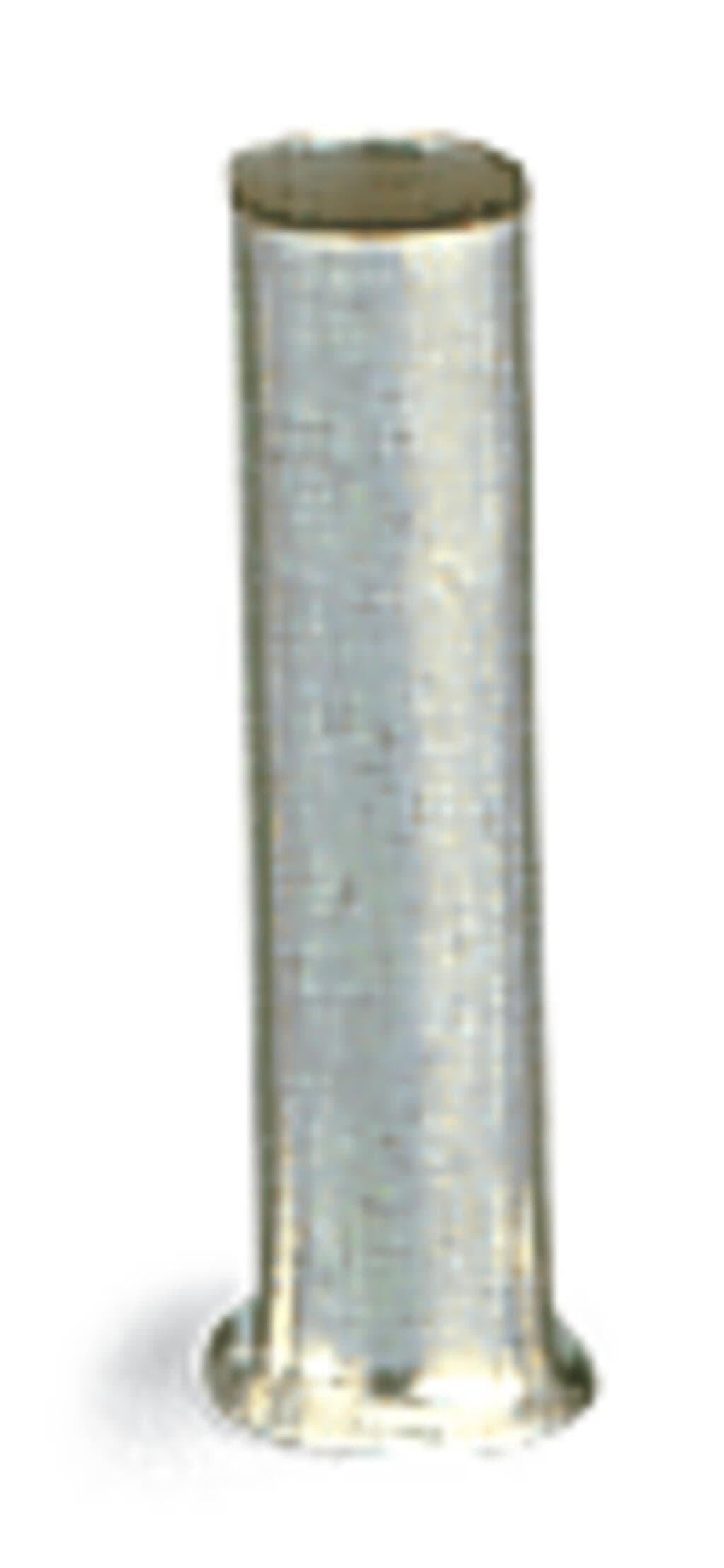

Product Model
216-103
Key Features
- 1Electro-tin plated for durability and corrosion resistance.
- 2Non-insulated design for easy crimping and reliable connections.
- 38 mm length for precise wire management in tight spaces.
- 4Suitable for 18 AWG wires, ensuring compatibility with various electrical systems.
- 5High-quality construction from WAGO, a trusted brand in electrical connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sleeve cross-section (AWG) | 18AWG | Sleeve for | 1mm2 |
| Strip length | 8?mm?/ 0.31?inches | Length | 8mm |
| Diameter | 2.5mm | Diameter crimp sleeve inside | 1.4mm |
| Weight | 0.1g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-02-01 | eCl@ss 9.0 | 27-40-02-01 |
| ETIM 9.0 | EC000005 | ETIM 8.0 | EC000005 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5000?(1000)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332277655 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
