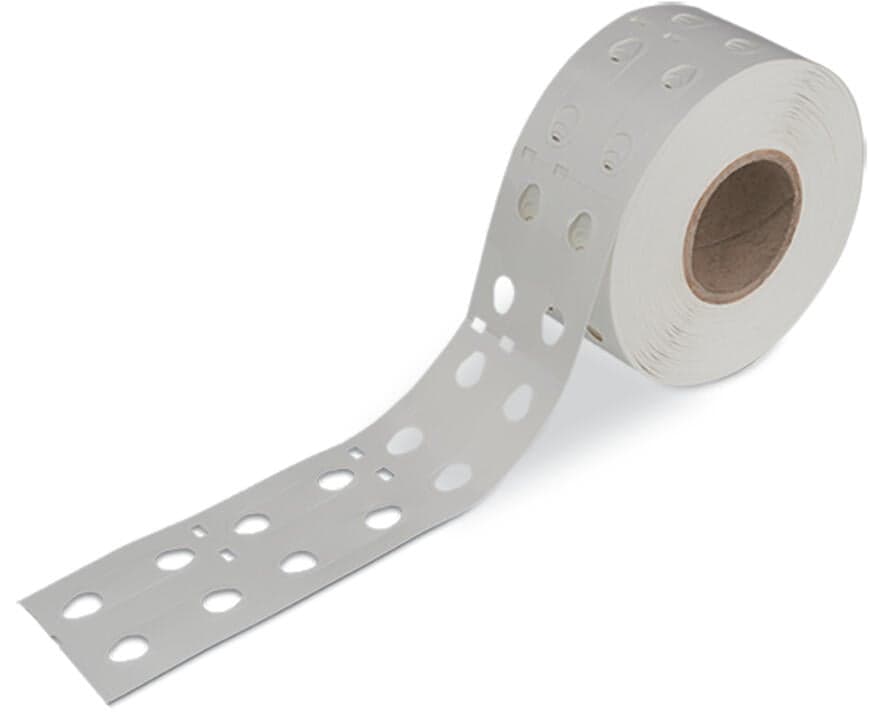

Product Model
211-863
Key Features
- 1Suitable for wire cross-section 6 to 16 mm² (16-10 AWG).
- 210 x 17 mm marking surface for precise identification.
- 3Compatible with WAGO thermal transfer printers (258-5000).
- 4Non-adhesive white polyester material for easy application.
- 5Available in rolls of 1000 pieces for efficient use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for wire cross-section 6 … 16 mm2 | Marking method | Thermal transfer |
| Marking | plain | Delivery form | Roll |
| Delivery form configuration | 1000 pcs/reel; 2?lines | Printing device | Smart Printer (Thermal Transfer Printer) |
| Depth | 0.22?mm | Mounting type | Sliding on conductor |
| Smear resistance | in conjunction with 258-5005 Ink Ribbon | Color | white |
| Material | Polyester | UV resistance | EN 60068-2-5:2010 Procedure B |
| Adhesive information | without adhesive | Halogen-free | Yes |
| Weight | 313g | Ambient temperature (operation) | -40 … +150 °C |
| Relative humidity | 40 … 50?% | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-04-01 | eCl@ss 9.0 | 27-40-06-29 |
| ETIM 9.0 | EC001530 | ETIM 8.0 | EC001530 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143082839 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
