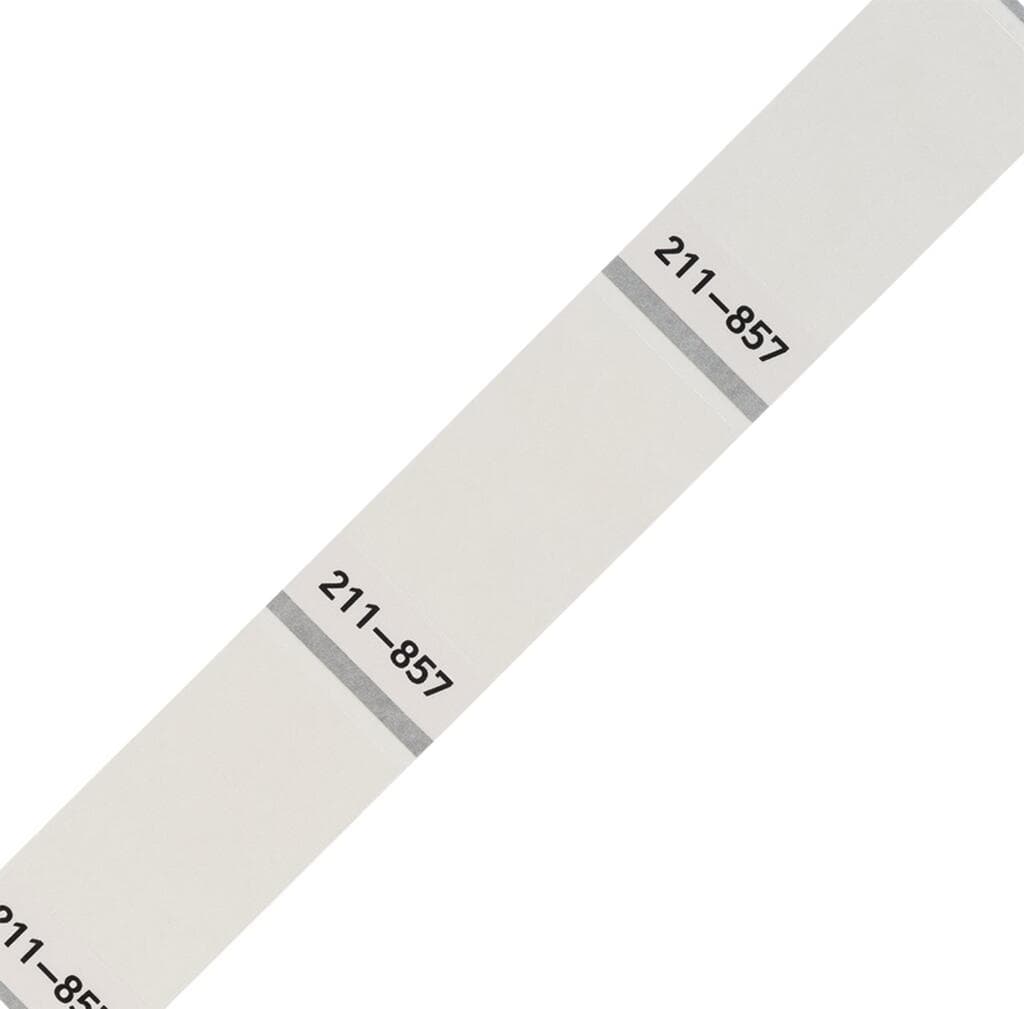

Product Model
211-857
Key Features
- 1Ideal for marking cables up to 22mm diameter.
- 2Compatible with WAGO Smart Printers.
- 3Available in rolls of 500 pieces.
- 4White PVC self-laminating with acrylic adhesive.
- 5Halogen-free and suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | plain |
| Delivery form | Roll | Delivery form configuration | 500 pcs/reel |
| Printing device | Smart Printer (Thermal Transfer Printer) | Depth | 0.12?mm |
| Marking surface | 18 x 44?mm | Mounting type | Wrapping |
| Smear resistance | in conjunction with 258-5014 Ink Ribbon | Color | white |
| Material | Polyvinyl chloride | UV resistance | EN 60068-2-5:2010 Procedure B |
| Adhesive information | Acrylic; permanent | Halogen-free | Yes |
| Weight | 340g | Ambient temperature (storage) | +10 … +22 °C |
| Ambient temperature (operation) | -30 … +120 °C | Relative humidity | 40 … 50?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-04-01 |
| eCl@ss 9.0 | 27-40-06-29 | ETIM 9.0 | EC001530 |
| ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143082822 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
