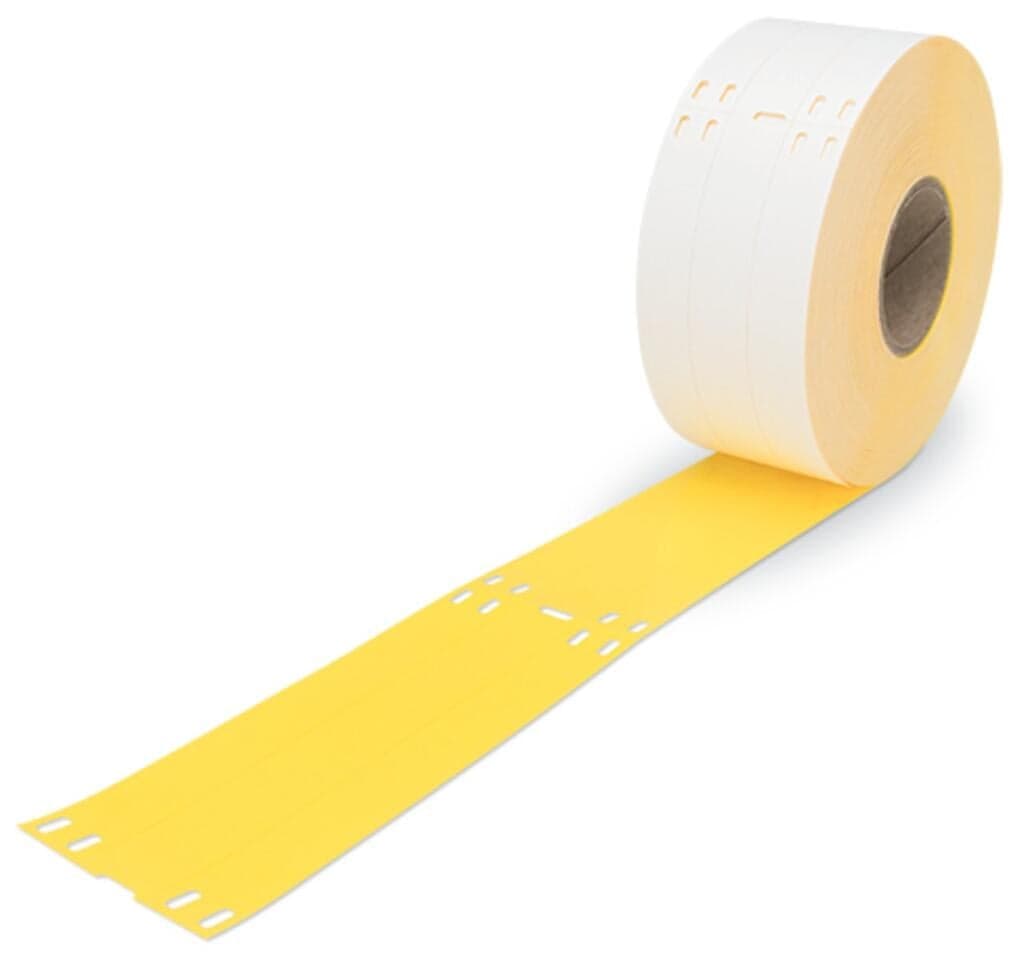

Product Model
211-836/000-002
Key Features
- 1High-Quality Material: Made from durable polyester, ensuring long-lasting performance.
- 2Easy Installation: Mounts effortlessly using cable ties, simplifying your marking process.
- 3Thermal Transfer Printing: Compatible with standard ink ribbons for clear, smudge-proof markings.
- 4Versatile Size: 100 x 15mm marking surface, suitable for various cable sizes.
- 5Halogen-Free and UV Resistant: Meets stringent environmental standards, ensuring reliability in demanding conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | plain |
| Delivery form | Roll | Delivery form configuration | 800 pcs/reel; 2?lines |
| Properties | Inner wrap (inside marking area) | Printing device | Smart Printer (Thermal Transfer Printer) |
| Height | 15?mm | Width | 117.5?mm |
| Depth | 0.17?mm | Marking surface | 100 x 15?mm |
| Mounting type | Mounting with cable ties | Smear resistance | in conjunction with 258-5005 Ink Ribbon |
| Color | yellow | Material | Polyester |
| UV resistance | EN 60068-2-5:2010 Procedure B | Adhesive information | without adhesive |
| Halogen-free | Yes | Weight | 600g |
| Ambient temperature (storage) | +10 … +21 °C | Ambient temperature (operation) | -30 … +120 °C |
| Relative humidity | 40 … 50?% | eCl@ss 10.0 | 27-40-04-01 |
| eCl@ss 9.0 | 27-40-04-01 | ETIM 9.0 | EC001530 |
| ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4055143446112 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
