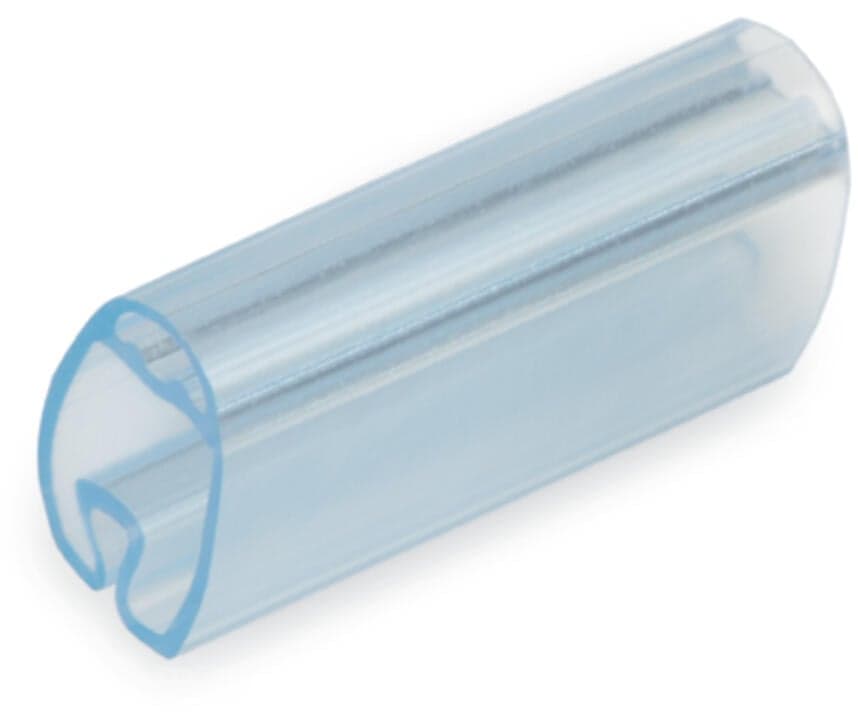

Product Model
211-824
Key Features
- 1Transparent Polyurethane Sleeve: Clear and durable for easy identification.
- 2Compatible with 211-821 Markers: Designed to work seamlessly with WAGO wire markers.
- 323mm Length: Convenient size for various cable applications.
- 4Halogen-Free: Meets safety standards with no halogen content.
- 5Snap-On Mounting: Easy installation with a secure snap-on mechanism.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for wire diameter 5 … 11 mm | Delivery form | Component |
| Properties | for one 211-821 marker | Printing device | Smart Printer (Thermal Transfer Printer) |
| Length | 23mm | Mounting type | Sliding on conductor |
| Color | transparent | Material | Polyurethane |
| Adhesive information | without adhesive | Halogen-free | Yes |
| Weight | 1.2g | Ambient temperature (storage) | +5 … +40 °C |
| Ambient temperature (operation) | -40 … +80 °C | Relative humidity | 40 … 80?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-04-01 |
| eCl@ss 9.0 | 27-40-04-01 | ETIM 9.0 | EC001530 |
| ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?pcs | Packaging type | box |
| Country of origin | IT | GTIN | 4050821675020 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
