Product Model

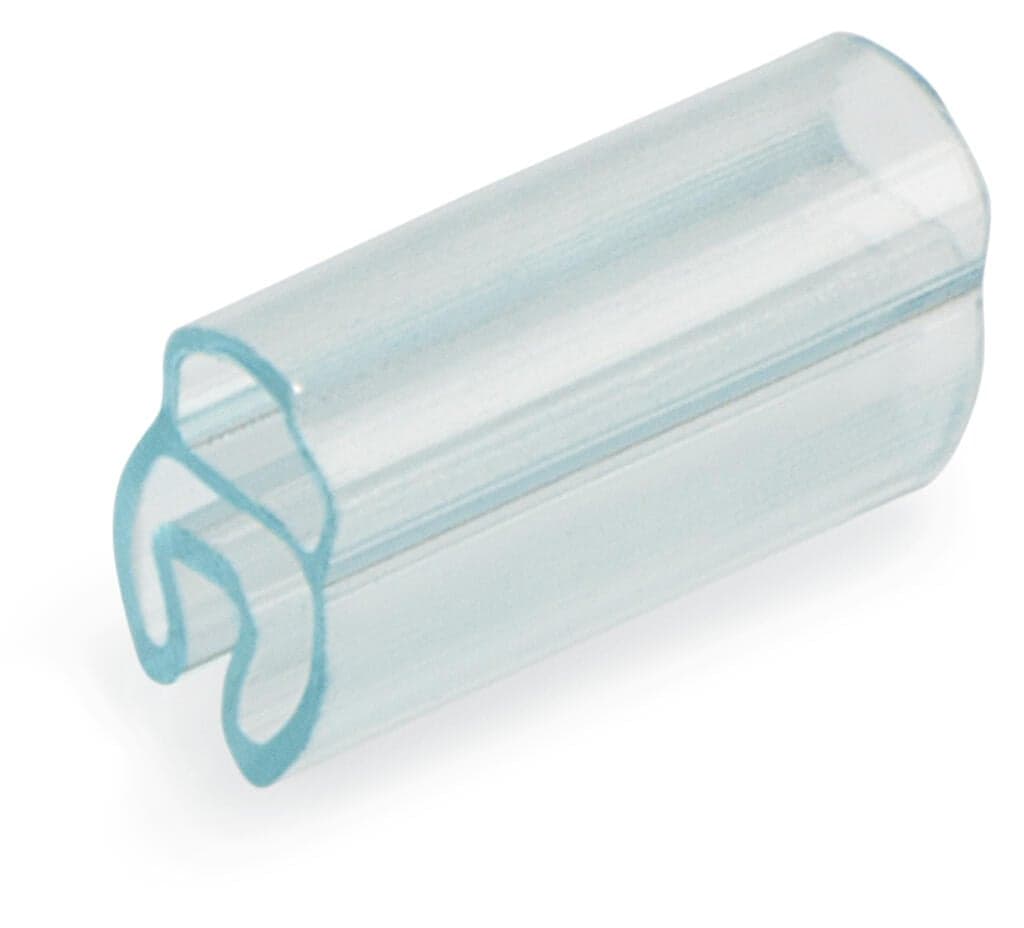

211-812
Key Features
- 1Precision Length: 12 mm nozzles ensure accurate cable marking.
- 2Halogen-Free: Safe for use in various environments, free from harmful chemicals.
- 3Versatile Use: Compatible with 211-811 marking strips for diverse applications.
- 4Transparent Material: Easy to read and apply, made from transparent polyester.
- 5Bulk Availability: Available in packs of 500 pieces for efficient use in projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for wire diameter 1.4 … 5 mm | Delivery form | Component |
| Properties | for one 211-811 marker | Printing device | Smart Printer (Thermal Transfer Printer) |
| Length | 12mm | Mounting type | Sliding on conductor |
| Color | transparent | Material | Polyurethane |
| Adhesive information | without adhesive | Halogen-free | Yes |
| Weight | 0.2g | Ambient temperature (storage) | +5 … +40 °C |
| Ambient temperature (operation) | -40 … +80 °C | Relative humidity | 40 … 80?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-04-01 |
| eCl@ss 9.0 | 27-40-04-01 | ETIM 9.0 | EC001530 |
| ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 500?pcs | Packaging type | box |
| Country of origin | IT | GTIN | 4050821674986 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
