Product Model

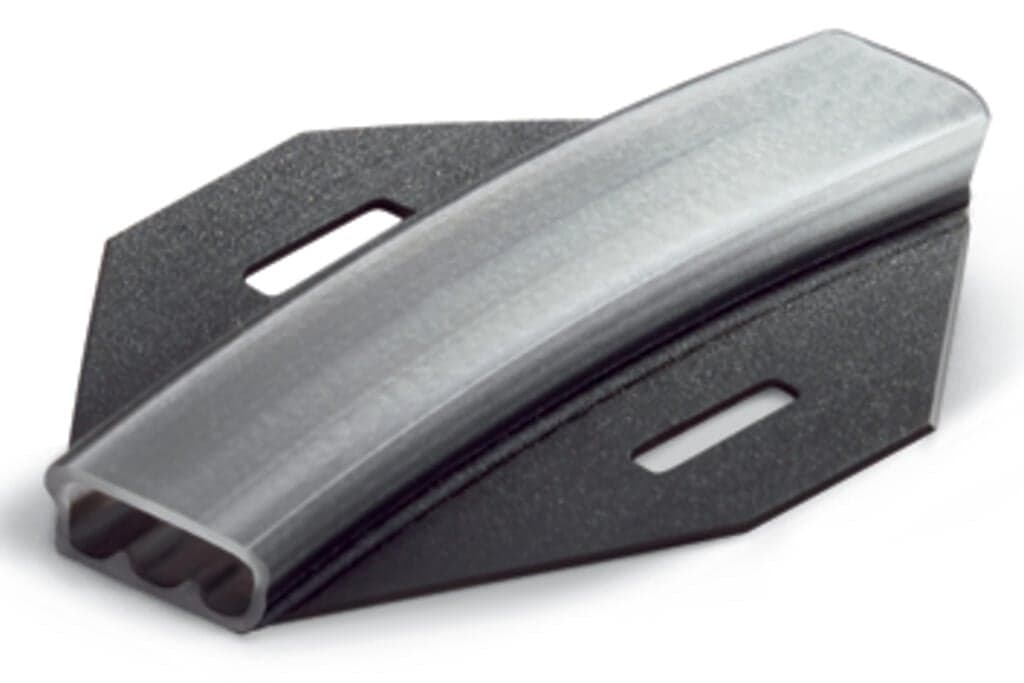

211-129
Key Features
- 1Halogen-Free Design: Ensures safety and compliance with ROHS standards.
- 2Efficient Connectivity: Provides reliable and maintenance-free connections.
- 3Versatile Compatibility: Compatible with wires from 10 mm² and marker cards.
- 4Easy Installation: Can be fitted prior to conductor termination using cable ties.
- 5High-Quality Construction: Built with durable polyurethane material for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for single strands (10 mm and larger) | Delivery form | Component |
| Properties | 23 mm long; for one marker | Printing device | TP 298+ |
| Length | 23mm | Mounting type | Mounting with cable ties |
| Color | black | Material | Polyurethane |
| Adhesive information | without adhesive | Halogen-free | Yes |
| Weight | 0.3g | Ambient temperature (storage) | +10 … +25 °C |
| Ambient temperature (operation) | -40 … +100 °C | Relative humidity | 40 … 60?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-04-01 |
| eCl@ss 9.0 | 27-40-04-01 | ETIM 9.0 | EC001530 |
| ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1000?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454486143 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
