Product Model
211-124
Key Features
- 1Halogen-free design for safe use in sensitive environments.
- 223mm length provides precise fitment in various industrial setups.
- 3Compatible with 211-110/-111/-120/-121 connectors for seamless integration.
- 4Mechanically robust with a weight of 0.51g for reliable performance.
- 5Ideal for marking accessories in TP printers and nozzles, enhancing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for wire diameter 3.7 … 5.9 mm or 2.5 … 6 mm | Delivery form | Component |

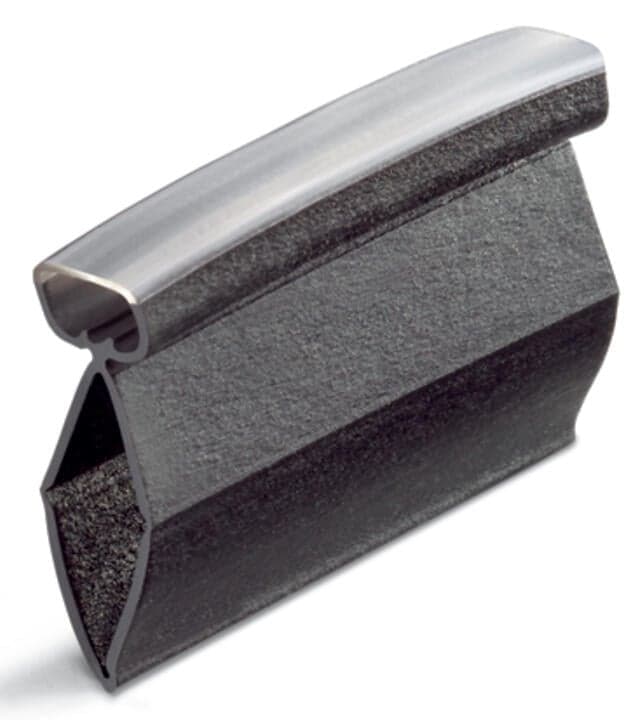

| Properties | 23 mm long; for one marker | Printing device | TP 298+ |
| Length | 23mm | Mounting type | Sliding on conductor |
| Color | black | Material | Polyurethane |
| Adhesive information | without adhesive | Halogen-free | Yes |
| Weight | 0.5g | Ambient temperature (storage) | +10 … +25 °C |
| Ambient temperature (operation) | -40 … +100 °C | Relative humidity | 40 … 60?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-04-01 |
| eCl@ss 9.0 | 27-40-04-01 | ETIM 9.0 | EC001530 |
| ETIM 8.0 | EC001530 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1000?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332104074 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
