Product Model
210-854

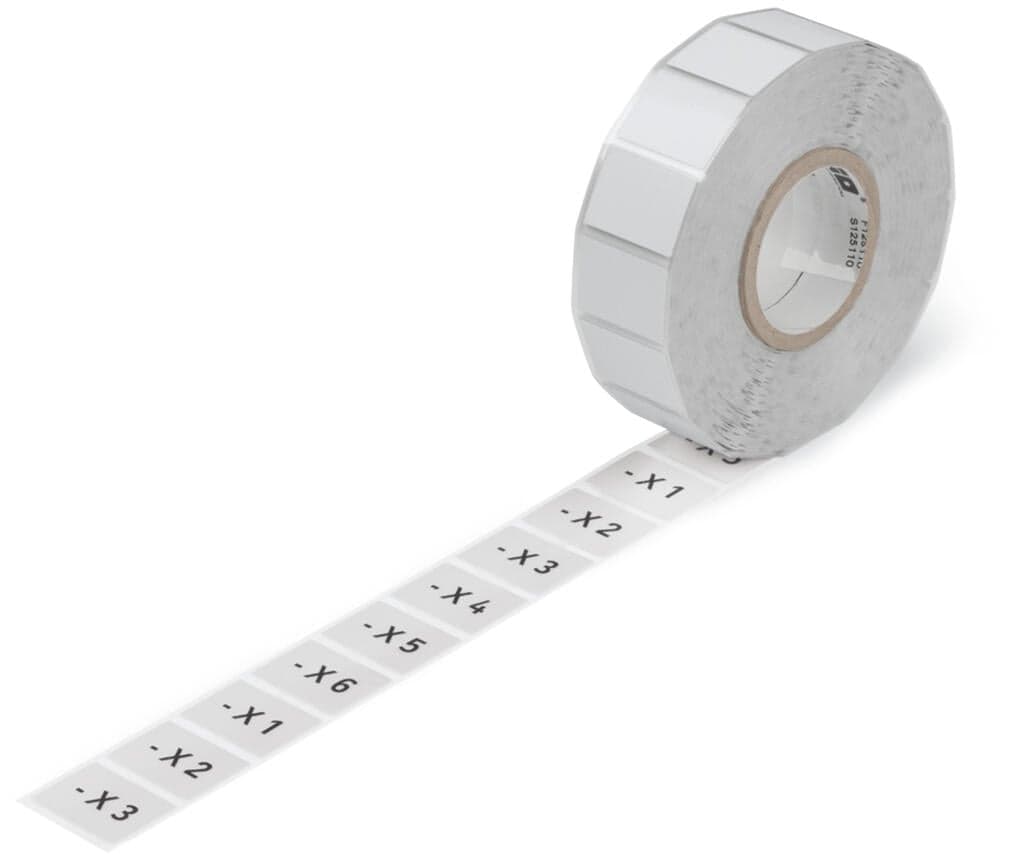

Key Features
- 1Silver-colored and halogen-free for safety and durability.
- 2Self-adhesive label for easy mounting on switches and buttons.
- 3Plain marking surface, 28 x 28 mm in size.
- 4Made from 175 µm thick polyester material.
- 5Compatible with smart printers (thermal transfer printer).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | without button frame | Marking method | Thermal transfer |
| Marking | plain | Delivery form | Roll |
| Delivery form configuration | 500 markers/reel; 1?line | Printing device | Smart Printer (Thermal Transfer Printer) |
| Height | 28?mm | Width | 28?mm |
| Depth | 0.09?mm | Marking surface | 28 x 28?mm |
| Mounting type | Sticking | Smear resistance | in conjunction with 258-5005 Ink Ribbon |
| Color | silver-colored | Material | Polyester |
| UV resistance | EN 60068-2-5:2010 Procedure B | Adhesive information | Acrylic; permanent |
| Halogen-free | Yes | Weight | 220g |
| Ambient temperature (storage) | ≥+22 °C | Ambient temperature (operation) | -30 … +130 °C |
| Relative humidity | 40 … 50?% | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-06-29 | eCl@ss 9.0 | 27-40-06-29 |
| ETIM 9.0 | EC001288 | ETIM 8.0 | EC001288 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821656876 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
