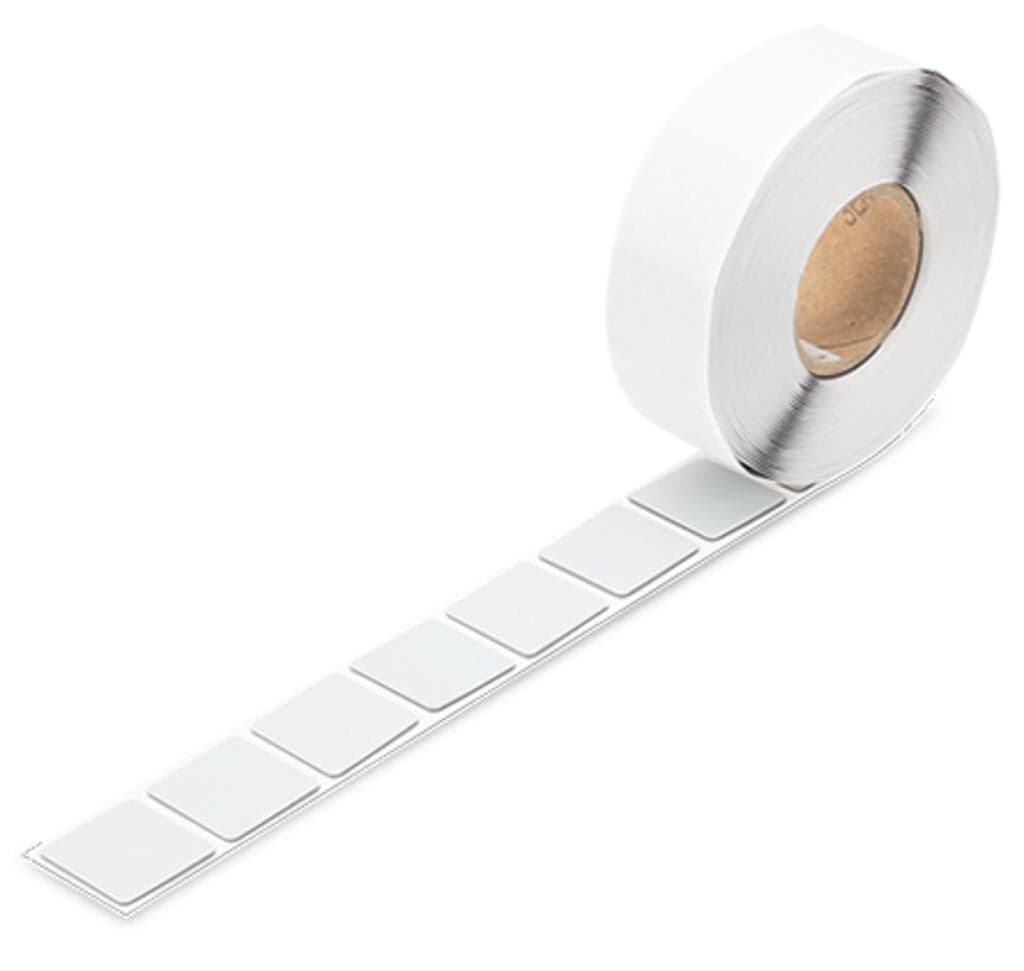

Product Model
210-848
Key Features
- 1High-quality materials ensure long-lasting performance.
- 2Easy-to-use connectors simplify installation and maintenance.
- 3Robust design withstands harsh industrial environments.
- 4Fast and secure connections for reliable data transfer.
- 5Compatible with a wide range of industrial devices and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | without button frame | Marking method | Thermal transfer |
| Marking | plain | Delivery form | Roll |
| Delivery form configuration | 250 markers/reel; 1?line | Height | 27?mm |
| Width | 27?mm | Depth | 0.09?mm |
| Marking surface | 27 x 27?mm | Mounting type | Sticking |
| Smear resistance | in conjunction with 258-5005 Ink Ribbon | Color | silver-colored |
| Material | Polyester | UV resistance | EN 60068-2-5:2010 Procedure B |
| Adhesive information | Acrylic; permanent; foamed | Halogen-free | Yes |
| Weight | 126g | Ambient temperature (storage) | ≥+22 °C |
| Ambient temperature (operation) | -30 … +130 °C | Relative humidity | 40 … 50?% |
| eCl@ss 10.0 | 27-40-06-29 | eCl@ss 9.0 | 27-40-06-29 |
| ETIM 9.0 | EC001288 | ETIM 8.0 | EC001288 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
