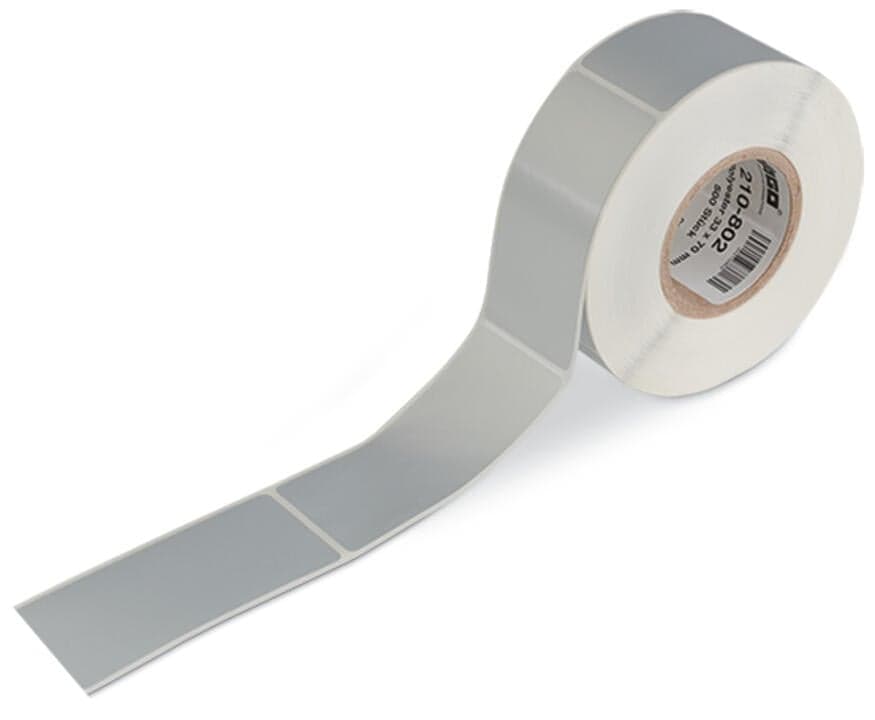

Product Model
210-812
Key Features
- 1Precision Identification: Ideal for precise identification and labeling in Siemens S7 systems.
- 2High-Quality Material: Made from durable, high-quality material for long-lasting performance.
- 3Versatile Application: Suitable for various applications including terminal blocks, wires, and cables.
- 4Easy Installation: Simple to install with self-adhesive backing for quick setup.
- 5Customizable Options: Available in different widths and lengths to meet specific marking needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | plain |
| Delivery form | Roll | Delivery form configuration | 500 markers/reel; 1?line |
| Printing device | Smart Printer (Thermal Transfer Printer) | Depth | 0.09?mm |
| Marking surface | 25 x 50?mm | Mounting type | Sticking |
| Smear resistance | in conjunction with 258-5005 Ink Ribbon | Color | silver-colored |
| Material | Polyester | UV resistance | EN 60068-2-5:2010 Procedure B |
| Adhesive information | Acrylic; permanent | Halogen-free | Yes |
| Weight | 300g | Ambient temperature (storage) | ≤+21 °C |
| Ambient temperature (operation) | -40 … +150 °C | Relative humidity | 40 … 50?% |
| eCl@ss 10.0 | 27-40-06-29 | eCl@ss 9.0 | 27-40-06-29 |
| ETIM 9.0 | EC001288 | ETIM 8.0 | EC001288 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143389037 | Customs tariff number | 4821902000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
