Product Model
210-710
Key Features
- 1Industry-proven spring pressure connection technology for fast, vibration-proof connections.
- 2Halogen-free materials ensure safety and compliance with industrial standards.
- 3Push-in termination of solid and stranded conductors, including fine-stranded conductors with ferrules.
- 4Secure female plugs via locking levers and strain relief plates for added security.

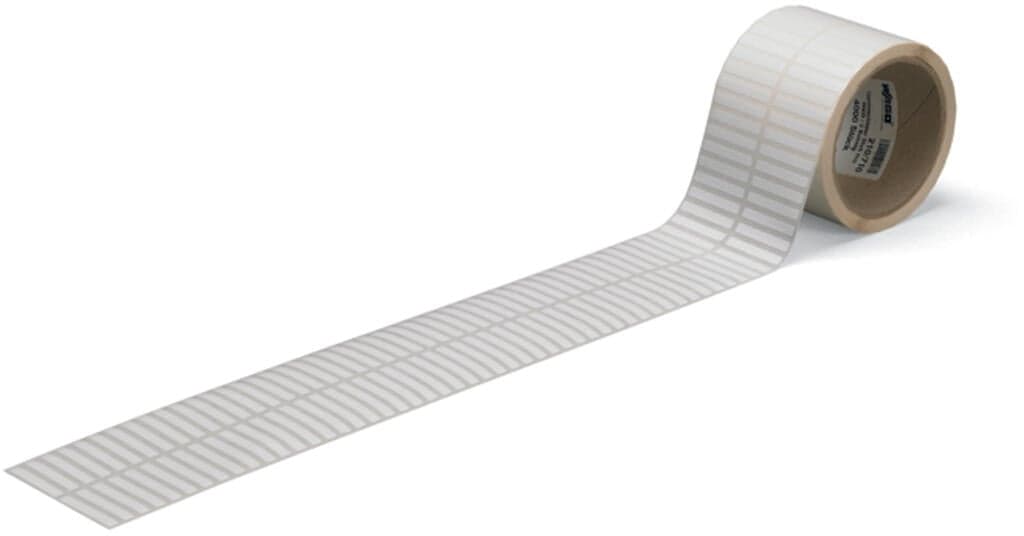

- 5Compatible with TP printers, offering 4000 labels per reel made of durable polyester material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | plain |
| Delivery form | Roll | Delivery form configuration | 4,000 labels/reel |
| Printing device | TP 298+ | Depth | 0.1?mm |
| Marking surface | 5 x 35?mm | Mounting type | Sticking |
| Material | Polyester | Halogen-free | Yes |
| Weight | 195g | Ambient temperature (storage) | +10 … +21 °C |
| Ambient temperature (operation) | -40 … +150 °C | Relative humidity | 40 … 50?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
| eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
| ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821296874 |
| Customs tariff number | 3919905060 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
