Product Model
210-704
Key Features
- 1Designed for DIN-35 rail mounting with a 20-pole configuration.
- 2Compatible with 21.6-26.4Vdc supply voltage range (24Vdc nominal).
- 3Includes DIN 41651 20-pin male connector for system connections.
- 4Equipped with two spring CAGE CLAMP 16-pin connectors for field connections.
- 5Operates in ambient temperatures from -20°C to +50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

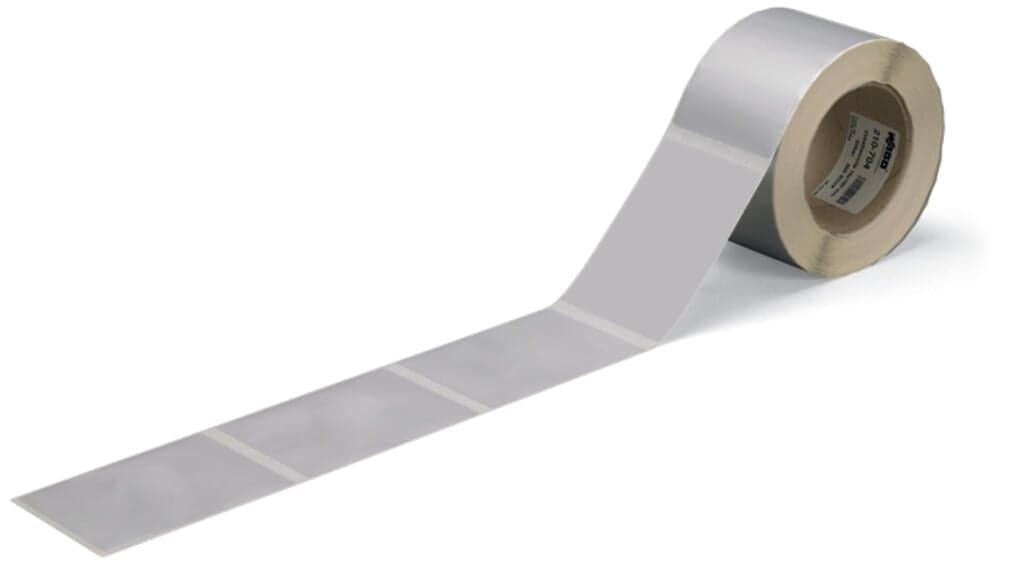

| Marking method | Thermal transfer | Marking | plain |
| Delivery form | Roll | Delivery form configuration | 500 labels/reel |
| Printing device | TP 298+ | Depth | 0.06?mm |
| Marking surface | 70 x 100?mm | Mounting type | Sticking |
| Color | silver-colored | Material | Polyester |
| Adhesive information | Acrylic; permanent | Halogen-free | Yes |
| Weight | 665g | Ambient temperature (storage) | +10 … +21 °C |
| Ambient temperature (operation) | -40 … +150 °C | Relative humidity | 40 … 50?% |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
| eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
| ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332825214 |
| Customs tariff number | 3919905060 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
