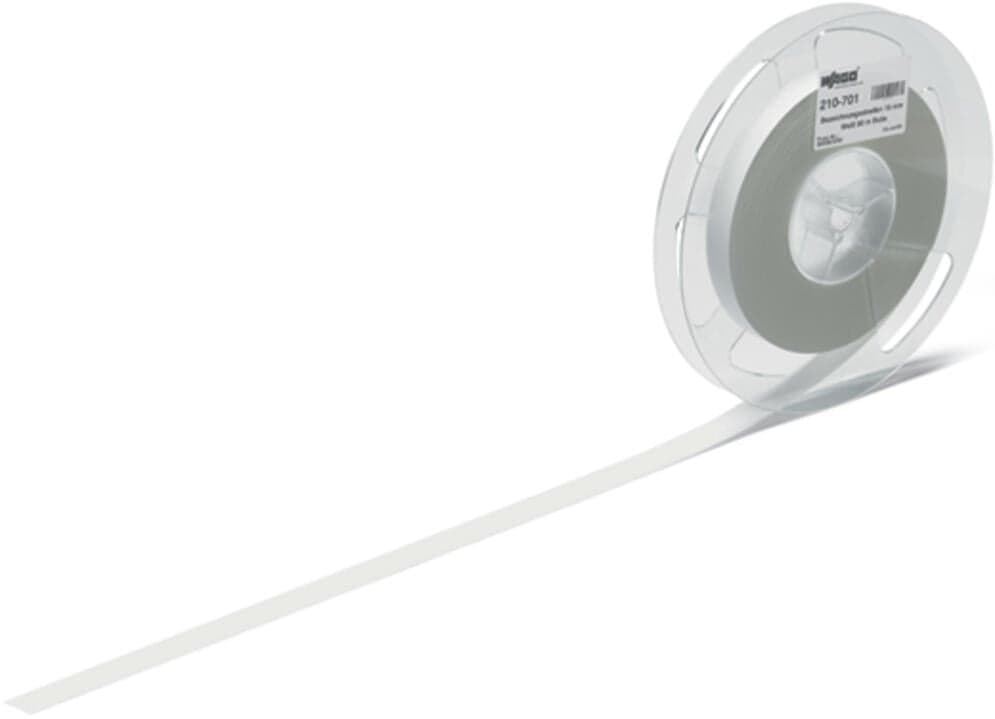

Product Model
210-702
Key Features
- 1Halogen-free material for safe use in various environments.
- 2Permanent adhesive ensures long-lasting marking.
- 3Thermal transfer compatible, suitable for smart printers.
- 4Plain marking, ideal for clear identification.
- 5Made from polyester, durable and resistant to UV light.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | plain |
| Delivery form | Roll | Delivery form configuration | 50 m; 1?line |
| Printing device | Smart Printer (Thermal Transfer Printer) | Width | 15?mm |
| Depth | 0.2?mm | Strip width | 15mm |
| Mounting type | Sticking | Smear resistance | in conjunction with 258-5005 Ink Ribbon |
| Color | white | Material | Polyester |
| UV resistance | EN 60068-2-5:2010 Procedure B | Adhesive information | Acrylic; permanent |
| Halogen-free | Yes | Weight | 200g |
| Ambient temperature (storage) | +10 … +21 °C | Ambient temperature (operation) | -40 … +150 °C |
| Relative humidity | 40 … 50?% | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-40-06-29 | eCl@ss 9.0 | 27-40-06-29 |
| ETIM 9.0 | EC001288 | ETIM 8.0 | EC001288 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332825191 | Customs tariff number | 3919905060 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
