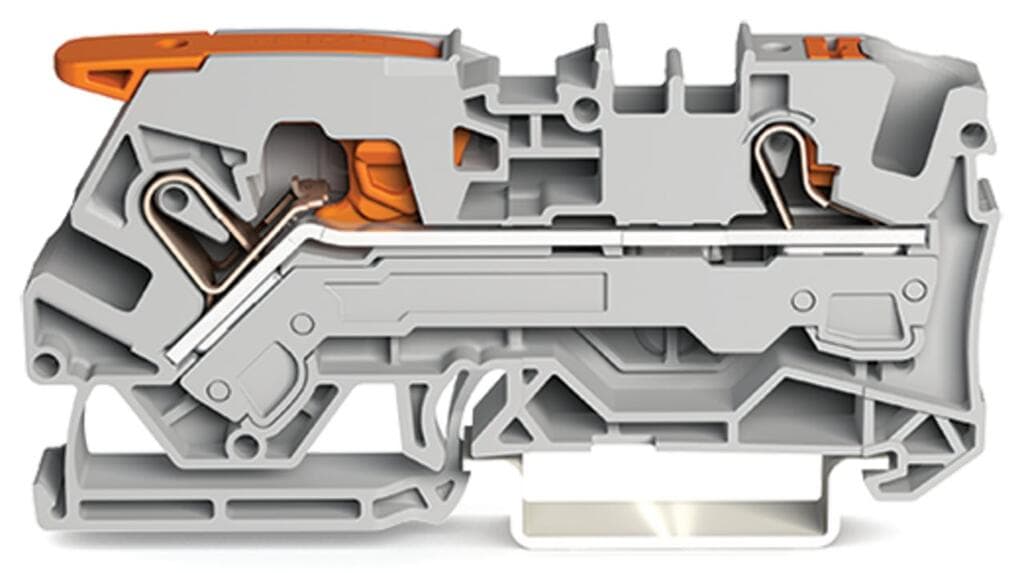

Product Model
2106-5201
Key Features
- 1Built with copper contacts and grey polyamide insulation for long-lasting performance.
- 2Supports up to 41A, making it suitable for demanding industrial connections.
- 3Easy to install on DIN rail 35 x 15 or 35 x 7.5, ensuring flexible mounting options.
- 4Simplifies wire connection with a secure and efficient push-in mechanism.
- 5Meets international standards including UL 60079, EN 60079-0, and IEC 60947, ensuring safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 7.5?mm?/ 0.295?inches | Height | 74.8?mm?/ 2.945?inches |
| Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Depth | 39.5 mm / 1.555 inches |
| Mounting type | DIN-35 rail | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.132MJ |
| Actuator color | orange | Weight | 14.2g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143742450 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 18 ATEX 1011 U / IECEx: PTB 18.0018U (Ex eb IIC Gb) |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 41A | Current at conductor cross-section (max.) mm2 | 55A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 30A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 30A |
| Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 45A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 45A |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
| Rated current (Ex e II) | 41A | Rated current (Ex e II) with jumper | 33A |
| Power loss, per pole (potential) | 1.311W | Rated current I<sub>N</sub> for specified power loss | 41A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Lever | Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
| Solid conductor; push-in termination | 1 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
| Wiring direction | Front-entry wiring | Actuation type 2 | Push-button |
Specifications may be subject to change without notice
