Product Model
210-334
Key Features
- 1High-Quality Material: Made from durable acrylic adhesive for long-lasting use.
- 2Easy to Use: Self-adhesive strips simplify installation without the need for additional tools.
- 3Precision Marking: Laser printed for clear and precise markings on terminal strips.
- 4Versatile Application: Suitable for DIN A4 sheets and terminal strips with 7.62mm pin spacing.
- 5Convenient Packaging: Available in packs of 1 or 100, ensuring you have the right quantity for your needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | laser printing | Marking | plain |

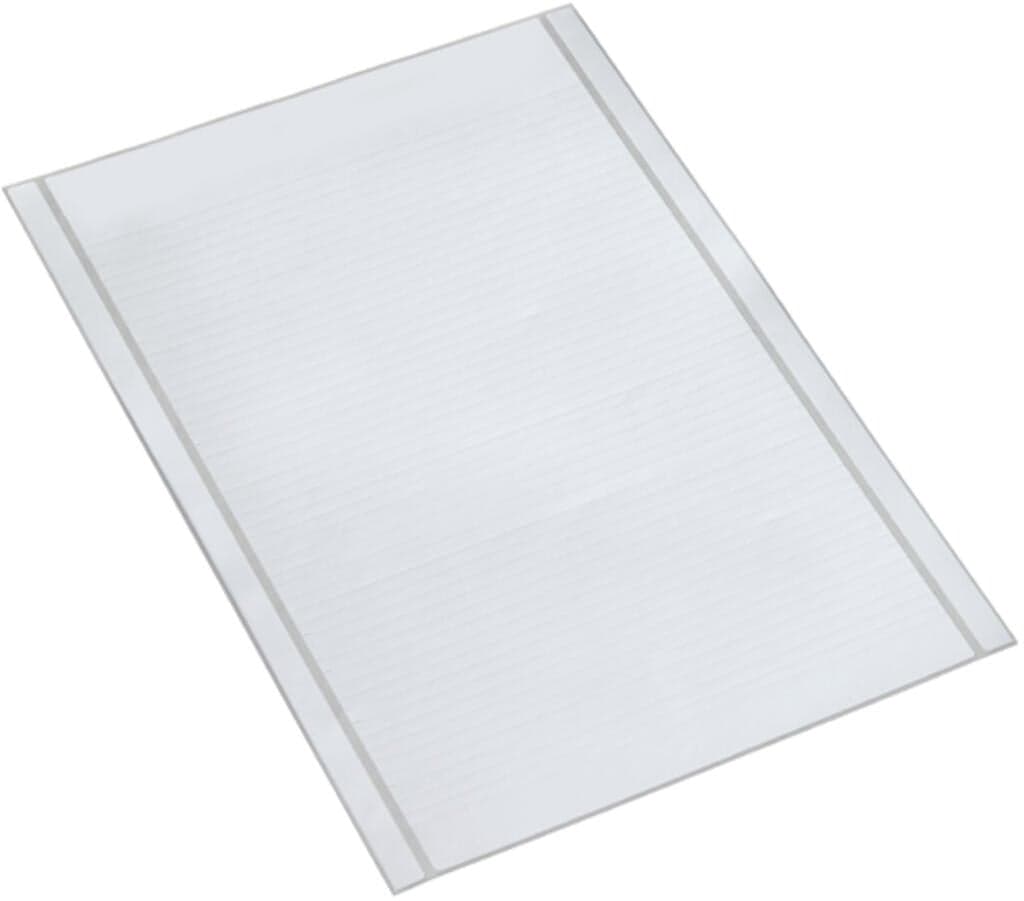

| Delivery form | DIN A4 card | Delivery form configuration | DIN A4 card with 48?strips |
| Printing device | Laser printer | Length | 182mm |
| Strip width | 5mm | Smear resistance | EN 60998-1:2004 |
| Color | white | Adhesive information | Acrylic; permanent |
| Halogen-free | Yes | Weight | 12.3g |
| Fire load | 0.172MJ | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-37 | eCl@ss 9.0 | 27-14-11-37 |
| ETIM 9.0 | EC000761 | ETIM 8.0 | EC000761 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332825122 | Customs tariff number | 3919905060 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
