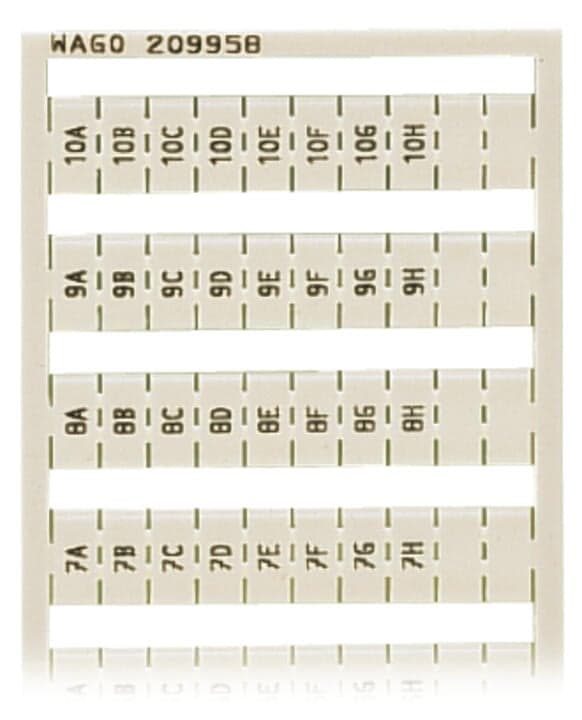

Product Model
209-958
Key Features
- 1Features consecutive symbols from 1A to 10H for precise identification.
- 2Easy to install with a snap-on mechanism, ensuring secure placement.
- 3Made from high-quality materials, resistant to smear and UV light.
- 4Designed for vertical marking, perfect for terminal blocks and subdistribution boxes.
- 5Compatible with various WAGO products, ensuring seamless integration in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | 1A, 1B, …, 1G, 1H, … to 10A, 10B, …, 10G, 10H, , ; |
| Marking (number) | 1 | Marking direction | Vertical marking |
| Marking color | black | Marking type | Symbol |
| Marking differentiation | Consecutive symbols each strip | Delivery form | Marker card |
| Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
| Marker/strip width | 5?mm | Marker width | 5mm |
| Smear resistance | EN 60998-1:2004 | Color | white |
| UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
| Weight | 7.8g | Fire load | 0.234MJ |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
| eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
| ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(5)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332101660 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
