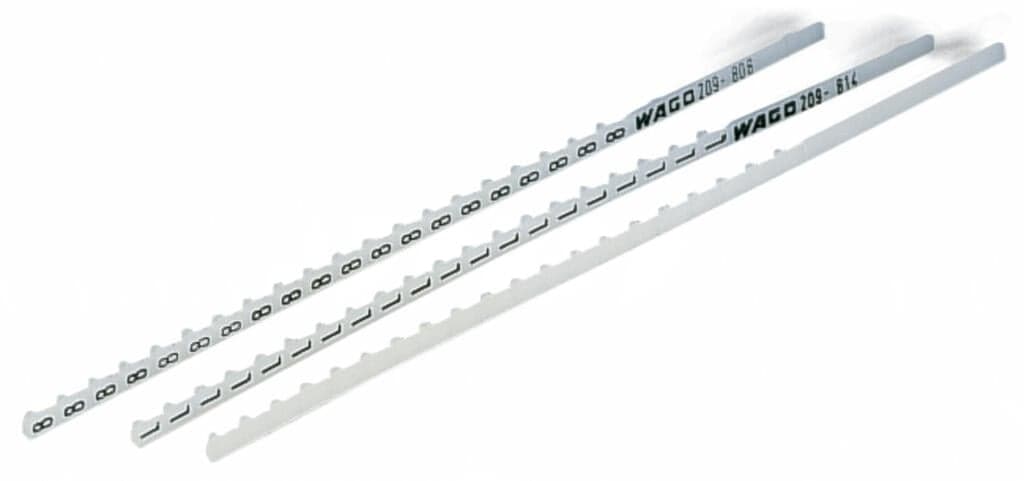

Product Model
209-803
Key Features
- 1Snap-On Type: Easy to install and secure on terminal blocks.
- 2Horizontal Marking: Clearly marks numbers or letters in a horizontal direction.
- 3Not Stretchable: Ensures consistent and precise marking without deformation.
- 4White with Black Digits: High-visibility marking for easy identification.
- 5Compact Design: Lightweight at 0.3 grams, perfect for space-saving applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking | 3 | Marking (number) | 20 |
| Marking direction | Horizontal marking | Marking color | black |
| Marking type | Numbers | Delivery form | Strip |
| Flammability class per UL94 | V2 | Color | white |
| Adhesive information | without adhesive | Halogen-free | Yes |
| Weight | 0.3g | Fire load | 0.01MJ |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-37 |
| eCl@ss 9.0 | 27-14-11-37 | ETIM 9.0 | EC000761 |
| ETIM 8.0 | EC000761 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 300?(10)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332276375 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
