Product Model

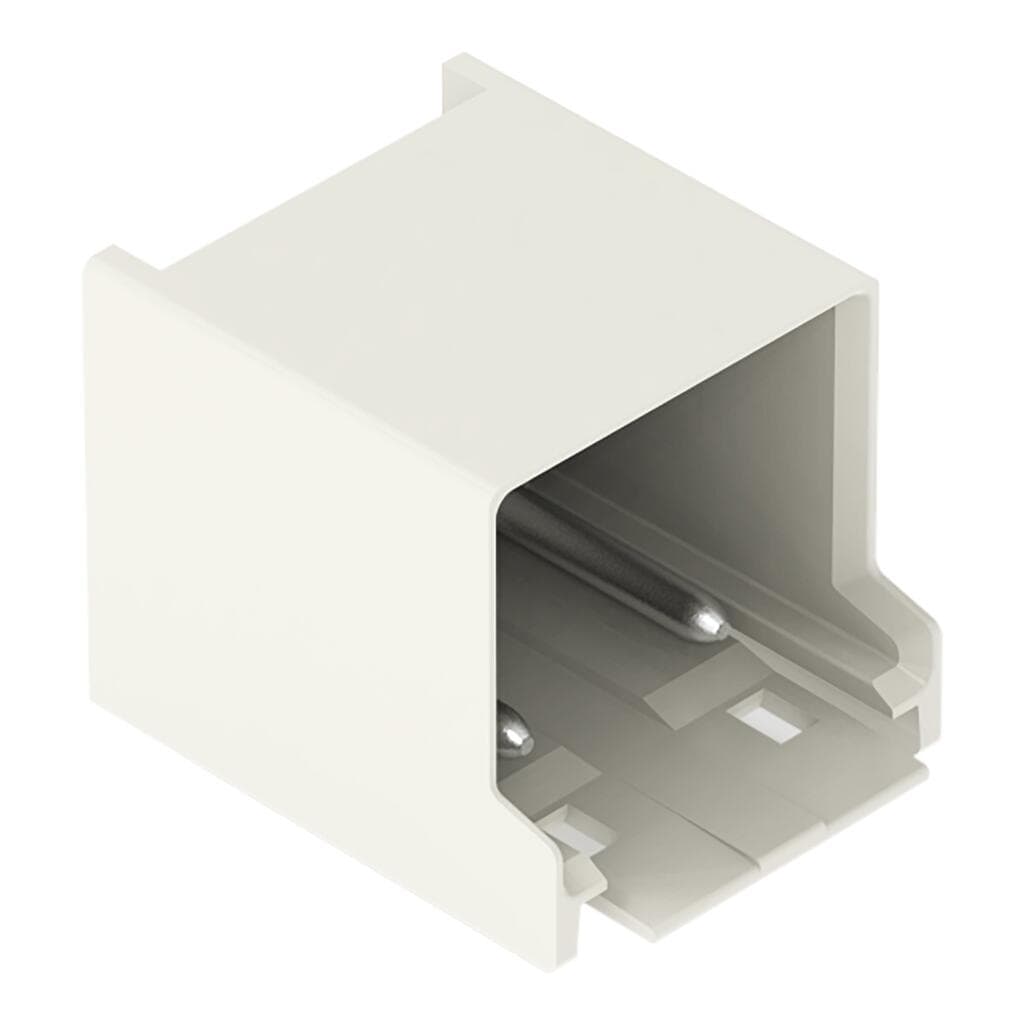

2092-3422/200-000
Key Features
- 1Reliable Connectivity: Designed for seamless integration in electrical and automation systems.
- 2Angled Solder Pins: 1.4 mm Ø solder pins for efficient and secure connections.
- 3High-Quality Material: Constructed from durable polyphthalamide (PPA GF) for long-lasting performance.
- 4Easy Disconnection: Features a locking latch that can be opened using an unlocking tool for easy disconnection.
- 5Versatile Applications: Compatible with various WAGO products, suitable for a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 14.7?mm?/ 0.579?inches | Height | 16.8?mm?/ 0.661?inches |
| Height from the surface | 14.4?mm?/ 0.567?inches | Depth | 19.5?mm?/ 0.768?inches |
| Solder pin length | 2.4mm | Solder pin diameter | 1.4mm |
| Plated through-hole diameter (THR) | 1.6(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
| Locking of plug-in connection | Locking latch | PCB contact | THR |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.04MJ |
| Weight | 1.8g | MSL per J-STD 020D | 1 |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821396550 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
| Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
| Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Number of poles | 2 |
Specifications may be subject to change without notice
