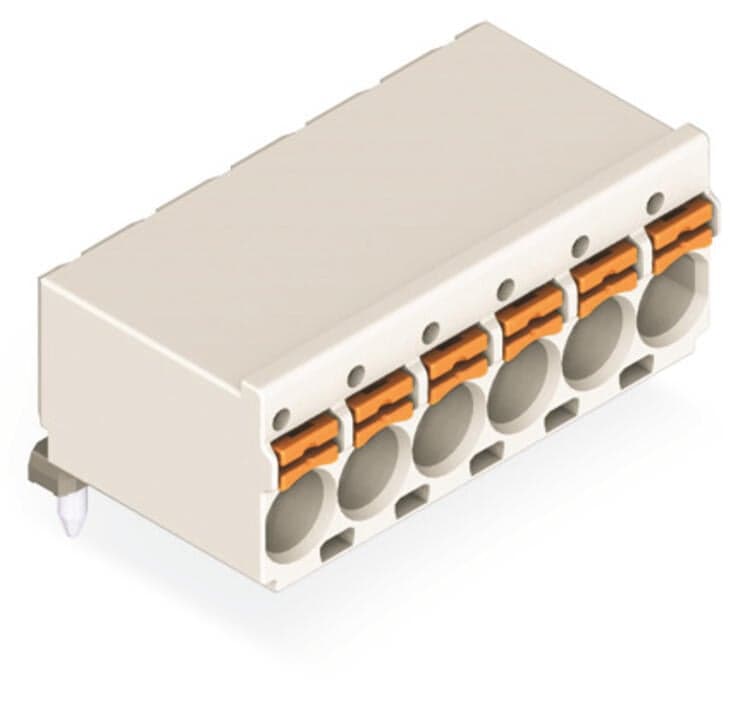

Product Model
2092-2373/200-000/997-405
Key Features
- 1Easy installation with push-button operation.
- 2Compatible with both stranded and solid wires.
- 3Silver-plated contacts ensure high conductivity.
- 4Angled design for versatile PCB mounting.
- 5Durable construction with thermoplastic isolator.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
| Clamping units | 3 | Total number of potentials | 3 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 5 mm / 0.197 inches | Width | 15 mm / 0.591 inches |
| Solder pin length | 2.4mm | Solder pin diameter | 1.4mm |
| Plated through-hole diameter (THR) | 1.6(+0.1)mm | Reel diameter of tape-and-reel packaging | 330mm |
| Tape width | 44mm | Variable coding | No |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
| Locking of plug-in connection | none | PCB contact | THR |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
| Fire load | 7.08MJ | Weight | 6.5g |
| Limit temperature range | -60 … +100 °C | Processing temperature | -35 … +60 °C |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 120 (120) pcs |
| Packaging type | Bag | Country of origin | DE |
| GTIN | 4066966587043 | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
| Solid conductor | 0.2 … 2.5 mm2 / 24 … 12 AWG | Fine-stranded conductor | 0.5 … 2.5 mm2 / 20 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5 mm2 |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Conductor connection direction to PCB | 0° |
| Number of poles | 3 |
Specifications may be subject to change without notice
