Product Model

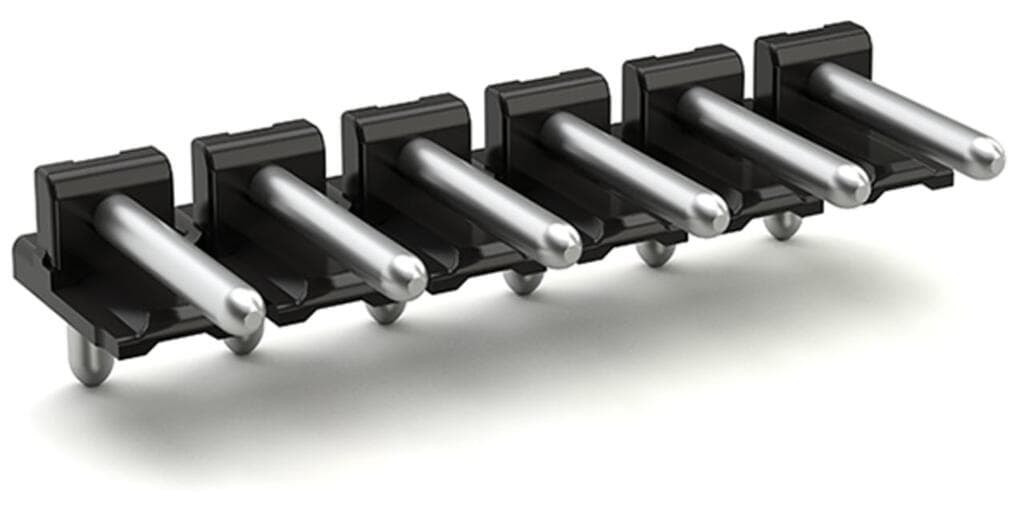

2092-1724
Key Features
- 1High-Quality PCB Connector: Designed for reliable connections in industrial automation.
- 2Anti-Rotation Protection: Ensures secure connections without rotation.
- 3THT PCB Contact: Compatible with through-hole technology PCBs.
- 4UL94 V0 Flammability Class: Meets stringent safety standards for flammability.
- 516A Rated Current: Supports high current applications with a rated current of 16A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 23.2?mm?/ 0.913?inches | Height | 7.6?mm?/ 0.299?inches |
| Height from the surface | 4?mm?/ 0.157?inches | Depth | 12.3?mm?/ 0.484?inches |
| Solder pin length | 3.6mm | Solder pin diameter | 1.4mm |
| Drilled hole diameter with tolerance | 1.6(+0.1)mm | Variable coding | No |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
| Locking of plug-in connection | none | PCB contact | THT |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Weight | 1.1g |
| Limit temperature range | -60 … +100?°C | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 300?pcs | Packaging type | bag |
| Country of origin | CN | GTIN | 4055143934930 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
| Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
| Rated surge voltage (II/2) | 4kV | Rated current | 16A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 4 |
Specifications may be subject to change without notice
