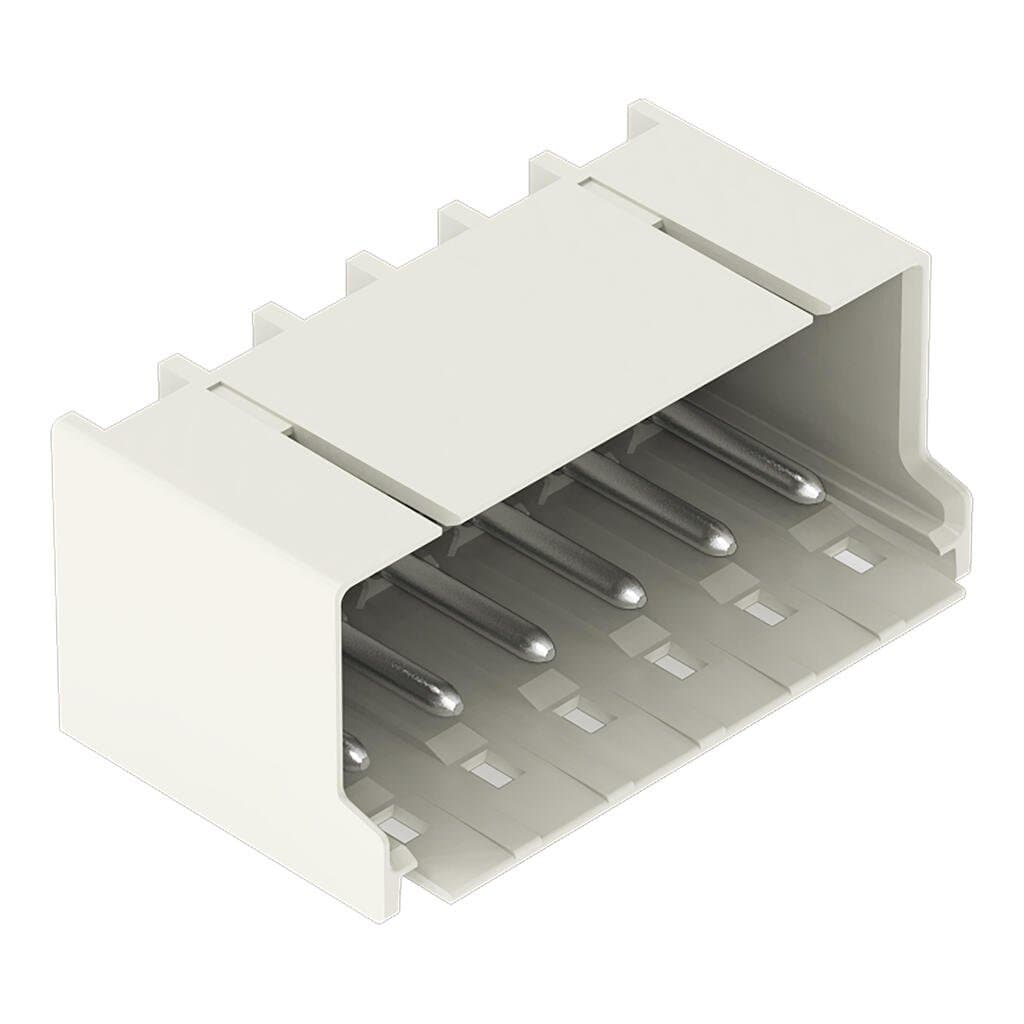

Product Model
2092-1427/200-000
Key Features
- 1Reliable PCB Interconnect: Designed for secure and efficient connections on printed circuit boards.
- 23.5 mm Pin Spacing: Ensures precise alignment and easy soldering.
- 310A Rated Current: Handles high electrical loads with reliability.
- 4Vibration Resistance: Up to 20g, providing durability in harsh environments.
- 5Light Gray Color: Easy to identify and integrate into your projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
| Total number of potentials | 7 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5 mm / 0.197 inches |
| Width | 37.2 mm / 1.465 inches | Height | 16.8 mm / 0.661 inches |
| Height from the surface | 14.4 mm / 0.567 inches | Depth | 19.5 mm / 0.768 inches |
| Solder pin length | 2.4mm | Solder pin diameter | 1.4mm |
| Plated through-hole diameter (THR) | 1.6(+0.1)mm | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Plugging without loss of pin spacing | Yes |
| Mating direction to the PCB | 0° | Locking of plug-in connection | Locking latch |
| PCB contact | THR | Note (material data) | Information on material specifications can be found here |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Weight | 4.1g | Limit temperature range | -60 … +100 °C |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100 pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4066966637786 | Customs tariff number | 85366930000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Number of poles | 7 |
Specifications may be subject to change without notice
