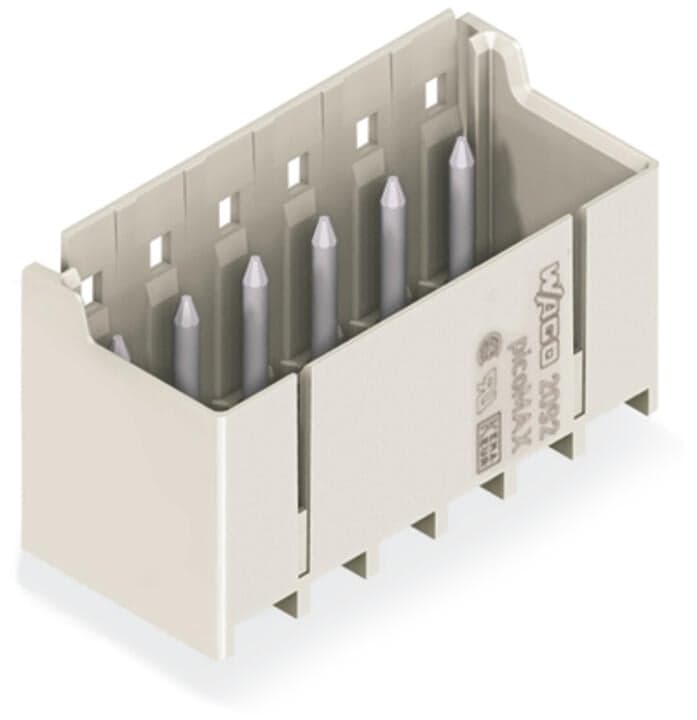

Product Model
2092-1406
Key Features
- 1Durable design with high-quality materials for long-lasting performance.
- 2Easy-to-use push-in connection technology for quick and secure connections.
- 3Compact size for space-saving applications in industrial settings.
- 4Excellent electrical conductivity and low contact resistance.
- 5Compatible with a wide range of industrial applications, including automation and control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
| Total number of potentials | 6 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 32.2?mm?/ 1.268?inches | Height | 23.1?mm?/ 0.909?inches |
| Height from the surface | 19.5?mm?/ 0.768?inches | Depth | 14.4?mm?/ 0.567?inches |
| Solder pin length | 3.6mm | Solder pin diameter | 1.4mm |
| Drilled hole diameter with tolerance | 1.6(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
| Locking of plug-in connection | Locking latch | PCB contact | THT |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.071MJ |
| Weight | 3.6g | Limit temperature range | -60 … +100?°C |
| Processing temperature | -35 … +60?°C | Product Group | 26 (picoMAX Connectors) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821163879 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Number of poles | 6 |
Specifications may be subject to change without notice
