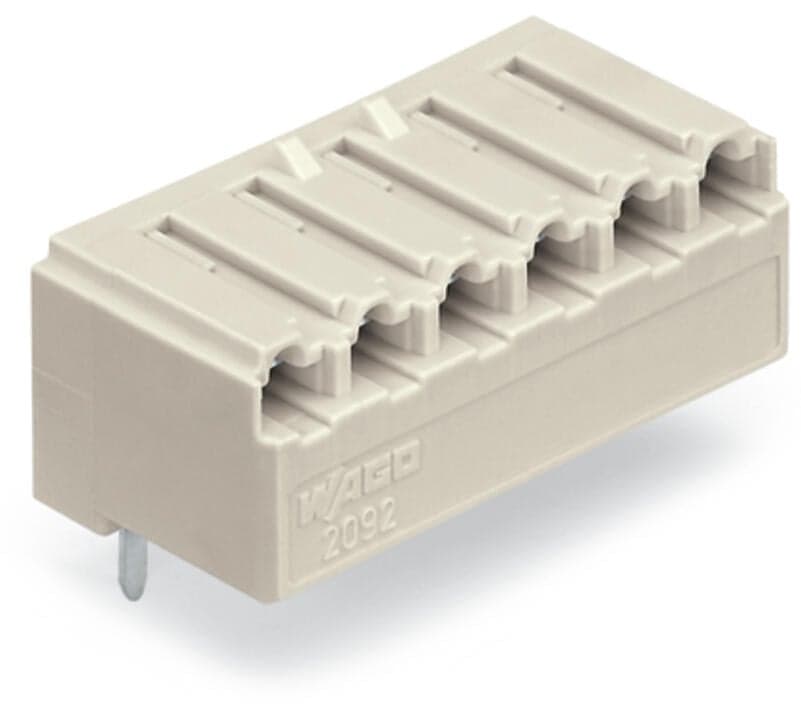

Product Model
2092-1326
Key Features
- 1Angled design for easy connectivity.
- 25mm pin spacing for precise alignment.
- 36-pole configuration for versatile applications.
- 40.4 x 1.3 mm solder pins for reliable connections.
- 5Available in light gray for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Total number of potentials | 6 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 5?mm?/ 0.197?inches | Width | 30?mm?/ 1.181?inches |
| Height | 17.2?mm?/ 0.677?inches | Height from the surface | 13.6?mm?/ 0.535?inches |
| Depth | 15.4?mm?/ 0.606?inches | Solder pin length | 3.6mm |
| Solder pin dimensions | 0.4 x 1.3?mm | Drilled hole diameter with tolerance | 1.5(+0.1)mm |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female header | Connector (connection type) | for PCB |
| Mismating protection | No | Plugging without loss of pin spacing | Yes |
| Mating direction to the PCB | 0° | Locking of plug-in connection | none |
| PCB contact | THT | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
| Contact material | Copper alloy | Contact plating | Tin |
| Fire load | 0.138MJ | Weight | 5.9g |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| Product Group | 26 (picoMAX Connectors) | eCl@ss 10.0 | 27-44-04-02 |
| eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821163725 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
| Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
| Rated surge voltage (II/2) | 4kV | Rated current | 16A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Number of poles | 6 |
Specifications may be subject to change without notice
