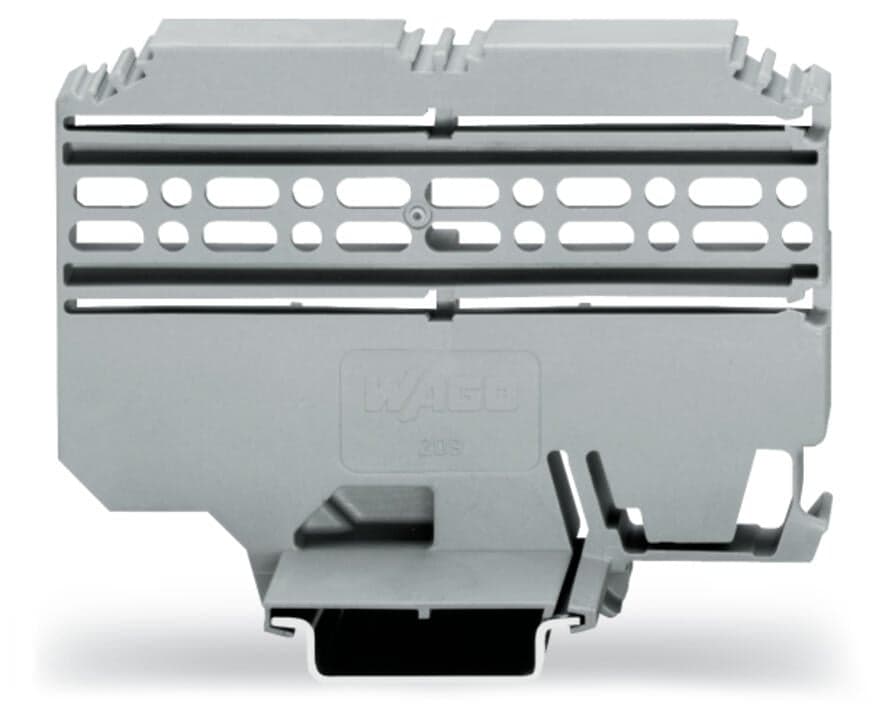

Product Model
209-148
Key Features
- 1Versatile Mounting: Suitable for both male and female connectors with snap-in mounting feet.
- 2Durable Material: Made from high-quality Polyamide (PA66) with a flammability class of V0.
- 3Efficient Connectivity: Ensures reliable and efficient connectivity solutions in various applications.
- 4Compliant with Standards: RoHS compliant with no exemption, meeting environmental product compliance standards.
- 5Compact Design: 25 mm wide, 60 mm high, and 88 mm deep, making it a compact solution for DIN rail systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 25?mm?/ 0.984?inches | Height | 60?mm?/ 2.362?inches |
| Depth | 88?mm?/ 3.465?inches | Mounting type | DIN-35 rail |
| Suitable | for male and female connectors with snap-in mounting feet | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.458MJ | Weight | 15.3g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | PL | GTIN | 4017332968829 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
