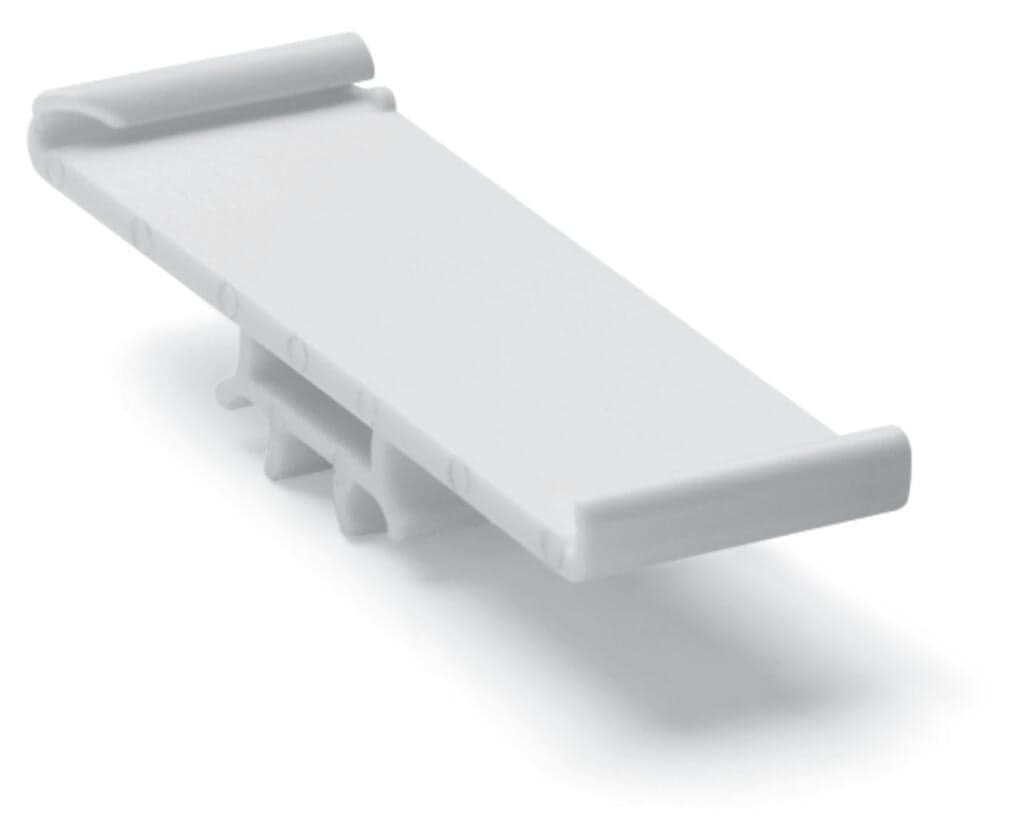

Product Model
209-145
Key Features
- 1ROHS Compliant: Meets environmental product compliance standards.
- 2Compact Design: Height 30.2 mm, width 10 mm, depth 6.7 mm.
- 3White Color: Ideal for clear visibility in various environments.
- 4Lightweight: Weighs only 0.830 g.
- 5Versatile Use: Compatible with WMB and Mini-WSB marker slots.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for WMB and Mini-WSB marker slots | Height | 30.2?mm?/ 1.189?inches |
| Width | 10?mm?/ 0.394?inches | Depth | 6.7?mm?/ 0.264?inches |
| Color | white | Weight | 0.8g |
| Fire load | 0.016MJ | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-40-75 | eCl@ss 9.0 | 27-14-40-75 |
| ETIM 9.0 | EC002248 | ETIM 8.0 | EC002248 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(50)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821290605 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
