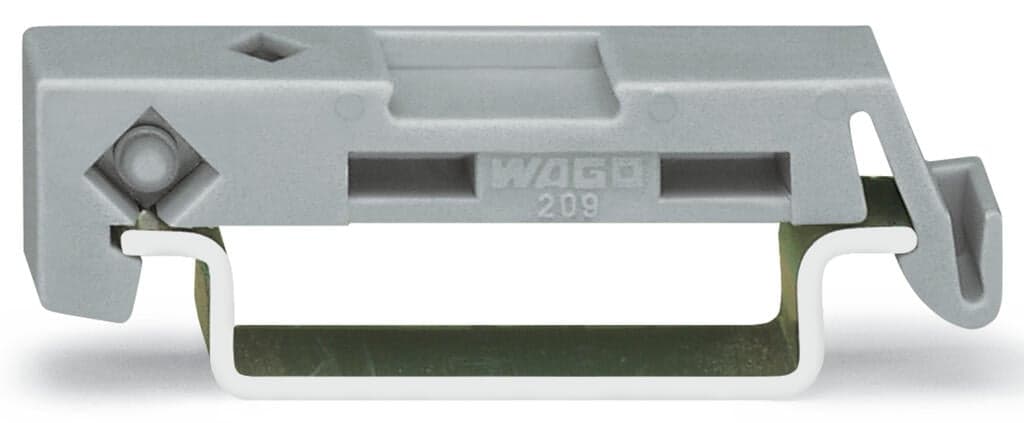

Product Model
209-137
Key Features
- 1DIN-35 Rail Mounting Compatibility: Designed for easy installation on DIN-35 rail systems.
- 2Gray Color: Gray mounting adapter for a sleek and professional look.
- 3End Plate Functionality: Can be used as an end stop for secure terminal block connections.
- 46.5mm Width: Compact design with a width of 6.5mm for efficient use in tight spaces.
- 5Gray Color: Gray color ensures high visibility and easy identification in electrical setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting type | DIN-35 rail | Width | 6.5?mm?/ 0.256?inches |
| Suitable | for male and female connectors with snap-in mounting feet | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.045MJ |
| Weight | 1.5g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4050821575306 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
