Product Model
209-130
Key Features

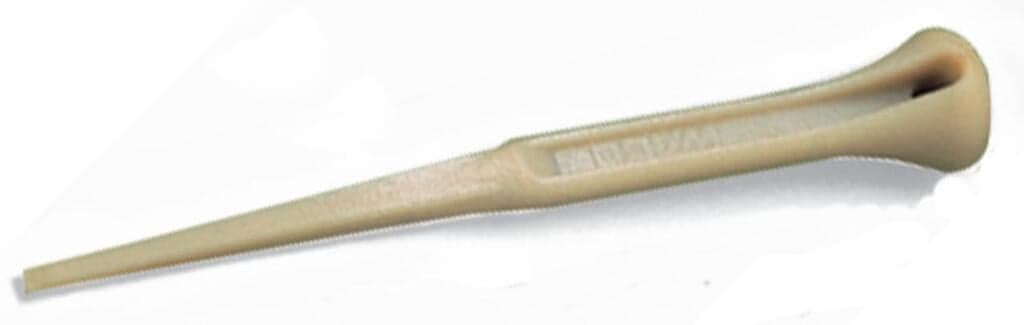

- 1The WAGO 209-130 insertion tool ensures quick and accurate connections with 264, 280, and 281 series terminal blocks.
- 2Suitable for both male and female connectors with CAGE CLAMP connection, making it versatile for various applications.
- 3Made from glass fiber-reinforced polyamide (PA66 GF) for enhanced durability and electrical insulation.
- 4Meets flammability class UL94 HB standards, ensuring safety in electrical installations.
- 5Designed for straightforward operation, reducing the need for specialized tools or training.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of spacings | 1-way | Pin spacing | 5/5.08?mm |
| Suitable | for male and female connectors with CAGE CLAMP?connection | Color | natural |
| Material group | I | Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) |
| Flammability class per UL94 | HB | Fire load | 0.285MJ |
| Weight | 9.6g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332096409 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
