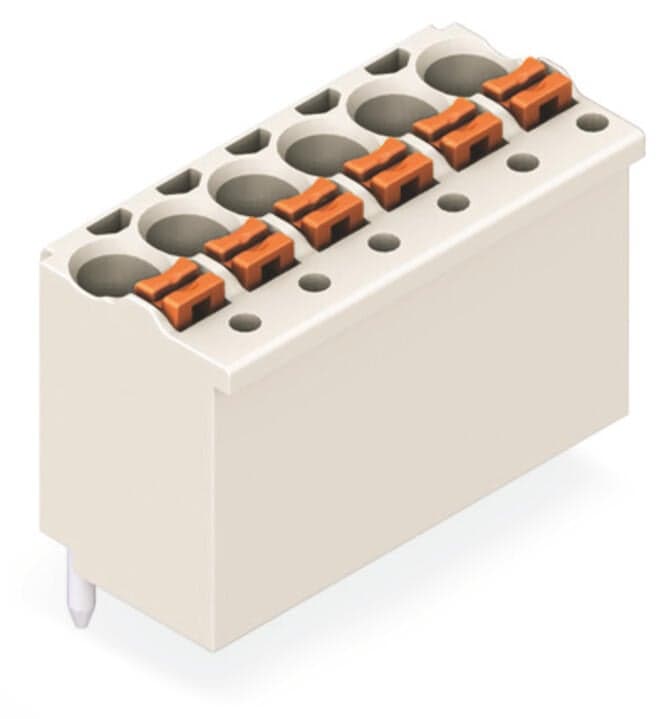

Product Model
2091-2176/200-000
Key Features
- 1Push-button actuation for easy connection.
- 23.5 mm pin spacing for precise PCB integration.
- 36-pole configuration for multiple connections.
- 4Light gray housing for clear visibility.
- 5Rated for 160 V and 10 A current.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
| Clamping units | 6 | Total number of potentials | 6 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 3.5 mm / 0.138 inches | Width | 21 mm / 0.827 inches |
| Height | 14 mm / 0.551 inches | Depth | 11.4 mm / 0.449 inches |
| Solder pin length | 2.4mm | Solder pin diameter | 1mm |
| Plated through-hole diameter (THR) | 1.2(+0.1)mm | Variable coding | No |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
| Locking of plug-in connection | none | PCB contact | THR |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
| Fire load | 0.064MJ | Weight | 3.3g |
| Limit temperature range | -60 … +100 °C | Processing temperature | -35 … +60 °C |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100 pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4066966518610 | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
| Solid conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG | Fine-stranded conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5 mm2 |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Conductor connection direction to PCB | 90° |
| Number of poles | 6 |
