Product Model

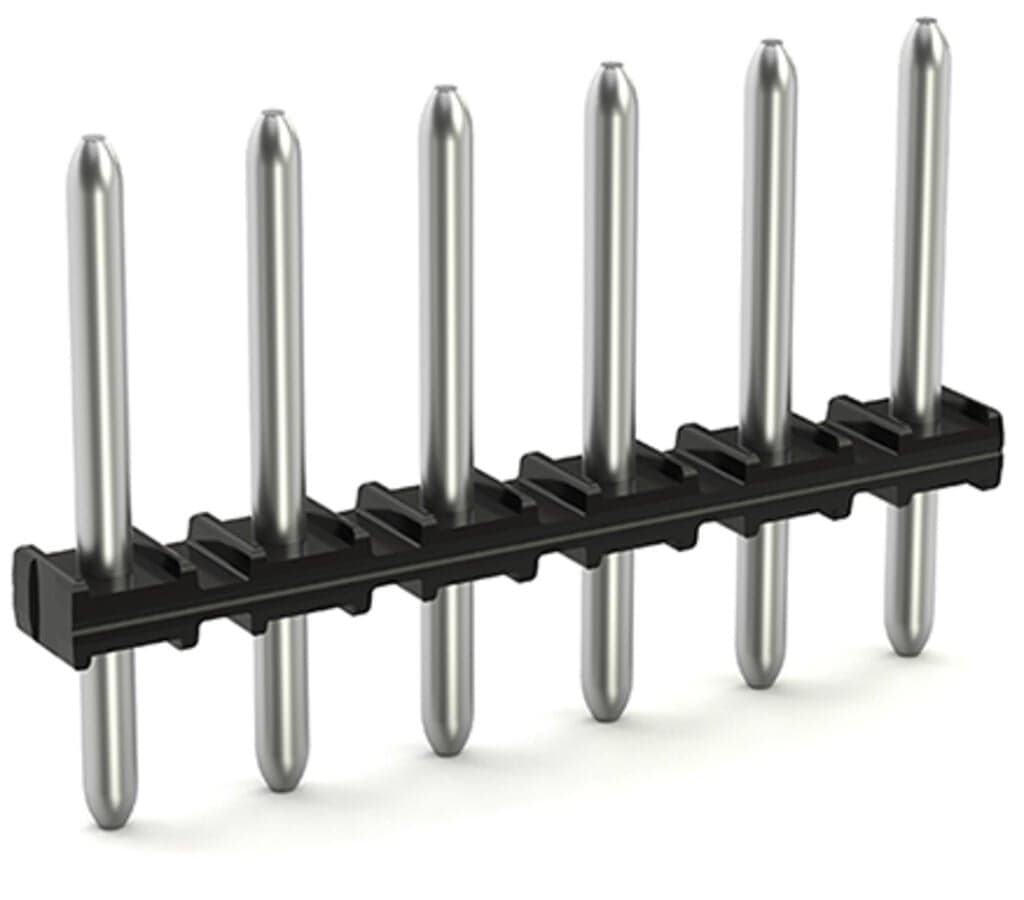

2091-1704/200-000
Key Features
- 1High-quality 1.0 mm solder pins for secure connections.
- 23.5 mm pin spacing for precise PCB mounting.
- 3Durable black design for long-lasting performance.
- 4Ideal for use in electrical and automation systems.
- 5Pack of 500 pieces for bulk applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Tape-and-reel packaging |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 3.5?mm?/ 0.138?inches | Width | 15.5?mm?/ 0.610?inches |
| Height | 11.7?mm?/ 0.461?inches | Height from the surface | 9.3?mm?/ 0.366?inches |
| Depth | 2.5?mm?/ 0.098?inches | Solder pin length | 2.4mm |
| Solder pin diameter | 1mm | Plated through-hole diameter (THR) | 1.2(+0.1)mm |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
| Mismating protection | No | Plugging without loss of pin spacing | Yes |
| Mating direction to the PCB | 90° | Locking of plug-in connection | none |
| PCB contact | THR | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Weight | 0.4g | MSL per J-STD 020D | 1 |
| Limit temperature range | -60 … +100?°C | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 500 (1) pcs | Packaging type | bag |
| Country of origin | CN | GTIN | 4055143935500 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 4 |
Specifications may be subject to change without notice
